Design flexibility and unrivaled power capability in one sleek package. Now Assembled in the USA!

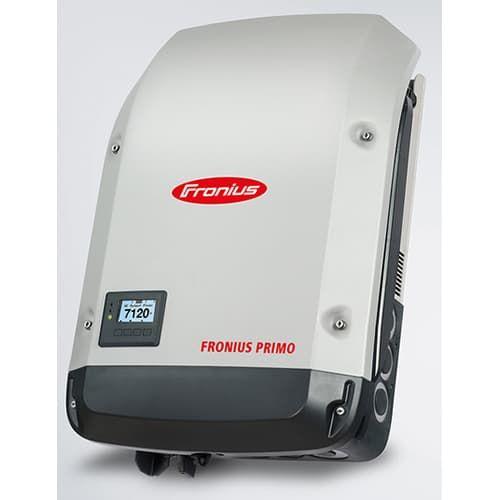

The transformerless, single-phase Fronius Primo 8.2 kW is the ideal solar inverter for residential applications wth a 208/240 grid connection. The SnapINverter has many standard features, making it convenient and"one-stop shop" for a high quality inverter. The hinge mounting system and lightweight inverter itself creates a streamlined installation process that can be done in under 15 minutes. Several industry-leading additions come standard with the Fronius Primo including Wi-Fi and SunSpec Modbus interfaces for seamless monitoring and datalogging, field proven Arc Fault Circuit Interruption (AFCI), and Fronius' free online and mobile monitoring platform. The Fronius Primo is NEC 2014 compliant and ready for codes and standards of the future. This great solution is now also available with a Revenue Grade Metering option, completely integrated.

• Fronius Primo Datasheet | Download
• Fronius Primo Operating Manual | Download

INPUT DATA	Fronius Primo 8.2-1
Recommended PV power (kWp)	6.6 - 12.7
Max. usable input current (MPPT 1/MPPT 2)	18 A / 18 A
Total max. DC current	36 A
Max. array short circuit current	2x 22.5 A
Operating voltage range	80* - 600 V
Max. input voltage	600 V
Nominal input voltage	420 V
Admissable conductor size DC	AWG 14 AWG 6
MPP Voltage Range	270 - 480 V
Number of MPPT	2

OUTPUT DATA	Fronius Primo 8.2-1
Max. output power 208/240	7900 / 8200 W
Max. continuous output current 208/240	38.0 A / 34.2 A
Recommended OCPD/AC breaker size 208/240	50 A / 45 A
CEC Efficiency 208/240	96.5 %
Max. Efficiency	97.0 %
Admissable conductor size AC	AWG 14 - AWG 6
Grid connection	208/240
Frequency	60 Hz
Total harmonic distortion	< 5.0 %
Power factor (cos ac,r)	0.85-1 ind./cap

GENERAL DATA	Fronius Primo 8.2-1
Dimensions (width x height x depth)	16.9 x 24.7 x 8.1 in.
Weight	47.29 lb.
Degree of protection	NEMA 4X
Night time consumption	< 1 W
Inverter topology	Transformerless
Cooling	Variable speed fan
Installation	Indoor and outdoor installation
Ambient operating temperature range	-40 ... 131, F (-40 ... +55, C)
Permitted humidity	0 - 100 %
DC connection terminals	4x DC+ and 4x DC- screw terminals for copper (solid / stranded / fine stranded) or aluminum (solid / stranded)
AC connection terminals	Screw terminals 12-6 AWG
Certificates and compliance with standards	UL 1741-2010, UL1998 (for functions: AFCI, RCMU and isolation monitoring), IEEE 1547-2003, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC Article 690, C22. 2 No. 107.1-01 (September 2001) , UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013

INTERFACES & PROTECTIVE DEVICES	Fronius Primo 8.2-1
AFCI; DC Disconnect; 2014 NEC Ready	All solutions integrated
Wi-Fi*/Ethernet/Serial	Wireless standard 802.11 b/g/n / Fronius Solar.web, SunSpec Modbus TCP, JSON / SunSpec Modbus RTU
6 inputs or 4 digital inputs/outputs	External relay controls
USB (A socket)	Datalogging and/or updating via USB
2x RS422 (RJ45 socket)	Fronius Solar Net, interface protocol
Datalogger and Webserver	Included
