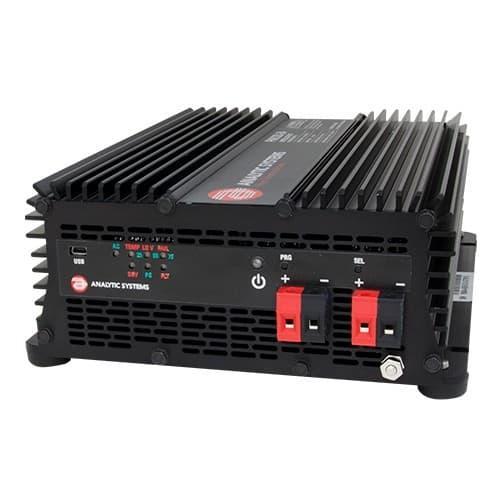

The images shown are for illustration purposes only and may not be an exact representation of the product

Analytic Systems, PWI320-24, 10/13A, 24 Volt Out, 85-264VAC PFC In, Power Supply

Model: PWI320-24
Manufactured by: Analytic Systems
Condition: New
Estimated Delivery: Nov 23rd - Nov 29th
Estimated Delivery: 2 to 3 Weeks
In Stock
Out of Stock
Built to Order - This Product Cannot Be Cancelled Once Order Is Placed

Price:

$780.98 $600.75

Manufacturer Info

Other products

Features

Digital Signal Processor controlled
Universal worldwide AC input
Computer programmable
Simple front panel controls
Easy connection to loads
High Vibration Rugged Duty
Dry Contact Output Fail Relay Carrying Handle
Canbus / RS232 / Remote Control port
Five year parts and labour warranty
Product Datasheet | Download
Product Manual | Download
Mechanical Drawing | Download

The PWI320 Intelligent Power Supply delivers a full 300 watts of output power for communications, control or a wide variety of other devices. It is fully Digital Signal Processor controlled and feature Universal Input Voltage from 85 to 265 VAC at 50 or 60 Hz with Active Power Factor Correction for the most efficient use of AC power.

The Power Supply is preset to the same voltage as a fully charged battery of the nominal output voltage (ie. 13.6V for a 12V model, etc.). The voltage can be adjusted over a reasonable range using the front panel controls, or the PowerWizard software that is free to download from www.analyticsystems.com.

Seven dual color LEDs clearly indicate output current levels as well as indicating faults with the Power Supply. Safety features include Power Supply over temperature shutdown, current limiting, short circuit protection, input under voltage shutdown and output overvoltage protection all with automatic recovery. PWI320MW model available with MIL connectors, extra input and output filtering and sealed to IP66

Function	Power Supply
Conversion	AC to DC
Power Level	300
Input Volts	85 - 264 VAC
Power Factor Corrected (PFC)	Yes
Output Volts	24 VDC
Output Amps Continuous	10
Output Amps Peak	13
Input/Output Isolation	Yes
Technology	Digital
Product Series on website	PWI320
Option Codes	'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'X' Ruggedized & Wide Temp, 'W' IP66 Water Resistant, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'E' European ROHS compliant, 'D' Paralleling Diodes, 'C' MIL461F & MIL810G Tested
