Features

• DSP Controlled
• Built-in AC Bypass
• Overload Protected
• Short Circuit Protected
• Programmable Frequency
• Over Temperature Protected
• Programmable Output Voltage
• Built-in GFCI (disabled by default)
• Programmable Low Voltage Shutdown
• Five year parts and labour warranty
• Download IPSi1205 Series Datasheet | Download

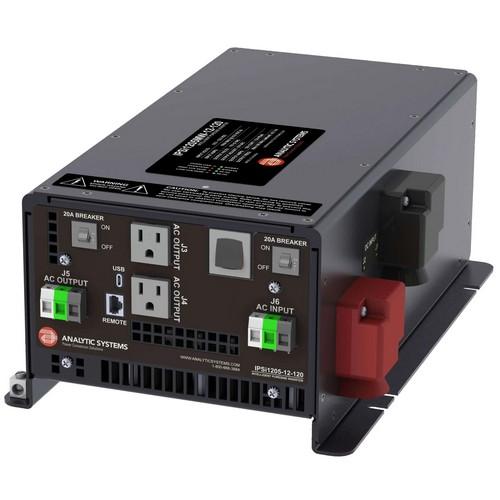

The IPSi1205 Series Puresine Inverter delivers reliable power for sensitive AC loads in harsh environments. Controlled by a sophisticated Digital Signal Processor (DSP), it ensures optimal performance and efficiency. Power MOSFET transistors and a durable toroidal transformer generate AC voltage from DC input, while advanced filtering minimizes EMI noise, safeguarding communication equipment.

Key safety features include low voltage warnings, high voltage and over-temperature shutdowns, with alarms displayed on a bright LED indicator and optionally mirrored on a remote control panel (contact Sales for details). The included Off-Line UPS option allows external AC to be routed through the inverter to the load; the inverter will take over supplying the load only if the external AC fails.

With the optional 'Inverter Wizard' software, users can fine-tune output frequency, voltage, and alarm parameters via a MicroUSB connection, as well as monitor and log operational data using a Windows laptop. IPSi1205-20-230 quantity

Function	Inverter
Conversion	DC to AC
Power (Watts)	1200
Input Volts	30 – 45 VDC
Output Volts	230 VAC
Output Amps Continuous	5
Output Amps Peak	6
Input/Output Isolation	Yes
Technology	Digital
Product Series on website	IPSi1205
Option Codes	OPT-G: Ground Fault Protection, OPT-U: Safety Special Inspection (CSA/SPE-1000), OPT-X: Ruggedized & Wide Temp
Specialization	Commercial/Industrial
