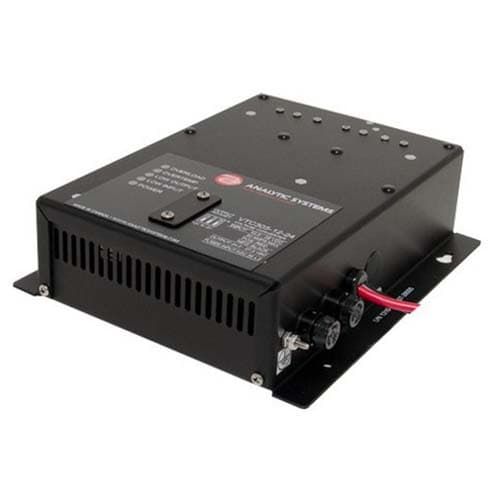

The images shown are for illustration purposes only and may not be an exact representation of the product

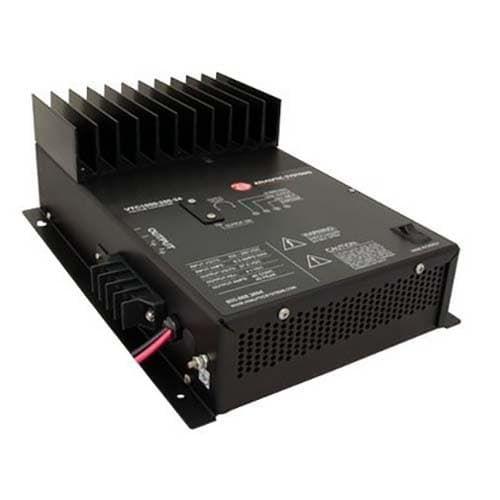

Analytic Systems, VTC1000-250-12, 60/70A, 12V Out, 230-280V In, Iso DC/DC Voltage Converter

Model: VTC1000-250-12
Manufactured by: Analytic Systems
Condition: New
Estimated Delivery: Apr 3rd - Apr 9th
Estimated Delivery: 2 to 3 Weeks
In Stock
Out of Stock
Built to Order - This Product Cannot Be Cancelled Once Order Is Placed

Price:

$2,711.48 $2,085.75

Manufacturer Info

Other products

Features

Ultra-quiet
Power sensitive electronics without interference
Rugged and reliable to ensure years of safe and trouble free operation
Fully Isolated Design
Adjustable output voltage
Audible and visual indicators for constant current, low input voltage, low 0utput voltage and over-temperature
Over-temperature shutdown
Short circuit protection
Output overvoltage crowbar
Cycle by cycle current limiting
Reverse input protection
Transient Voltage Suppression
Ultra-quiet low EMI operation
Dry contact output fail relay
Custom input voltages from 105 to 360 VDC
Custom output voltages from 12 to 55 VDC
Remote control option
Digital Volt/Ammeter option
19" Rackmount Option
Wide-Temperature operation Available
Conformal Coating and/or Harsh Environment Ruggedization Available
Three year parts and labour warranty
Product Datasheet | Download
Product Manual | Download

The model VTC1000 Voltage Converter supplies 12V, 24V or 48 VDC from a 110V, 220V or 300 VDC power source. Other input or output voltages up to 360 volts are also available by special order.

The all-new Current Mode switching design offers increased power and reliability in a compact package. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting and short circuit shutdown with automatic recovery.

The output voltage is easily adjusted 1.0 volts above or below the standard output voltage to accommodate special requirements.

Optional features include a Remote Control, a Digital Volt Ammeter, Battery Charging and/or a 19" Rack Mount version.

Function	Voltage Converter
Conversion	DC to DC
Power Level	1000
Input Volts	230 - 280 VDC
Output Volts	12 VDC
Output Amps Continuous	60
Output Amps Peak	70
Input/Output Isolation	Yes
Technology	Analog
Product Series on website	VTC1000
Option Codes	'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'R' 19 Inch Rackmount, 'Q' 23 Inch Rackmount, 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'D' Paralleling Diodes, 'C' MIL461F & MIL810G Tested, 'B' Battery Backup
