Features

• "Output ON" and "Overload" LED indicators
• Compact size and easy mounting
• Up to 80V input
• Simple plug in wiring
• Paralleling diodes available (Option D)
• Ruggedized for vibration and wide temperature range available (Option X)
• Watertight versions available (Option W = IP66; Option Y = IP67)
• Custom output voltages available
• Five year parts and labour warranty
• Product Datasheet | Download
• Product Manual | Download

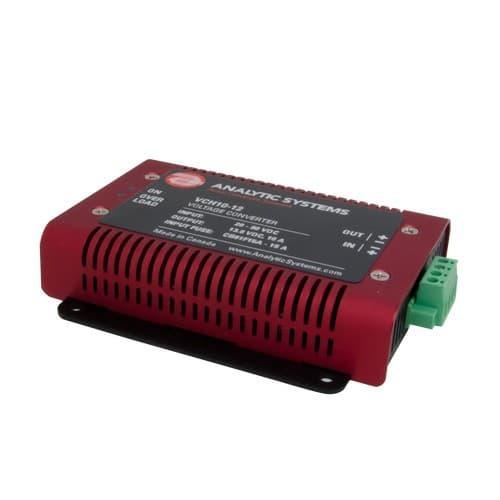

The VCH10 Series of Step-Down Voltage Converters supply up to 10 amps of output current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC. For automotive, heavy equipment, marine, industrial, rail or alternative energy environments.

All surface mount high frequency design offers higher reliability, higher efficiency (more than 92%), more power (up to 544 watts at 48 VDC Out) and minimum size.

The unit has reverse input protection, output current limiting and output over-voltage protection.

Function	Voltage Converter
Conversion	DC to DC
Power Level	360
Input Volts	45 - 80 VDC
Output Volts	36 VDC
Output Amps Continuous	10
Input/Output Isolation	No
Technology	Analog
Product Series on website	VCH10
Option Codes	'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'X' Ruggedized & Wide Temp, 'W' IP66 Water Resistant, 'V' Digital Volt/Ammeter, 'O' Open Frame - No chassis, 'N' Encapsulated, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'F' Electric Fork Lift, 'E' European ROHS compliant, 'D' Paralleling Diodes, 'C' MIL461F & MIL810G Tested
