Features

• Compatible with a wide range of battery types
• Won"t interfere with sensitive radio communication systems
• Rugged and reliable to ensure years of safe and trouble free operation
• Fast and accurate charging
• Three year warranty (parts & labor)
• Product Datasheet | Download
• Product Manual | Download

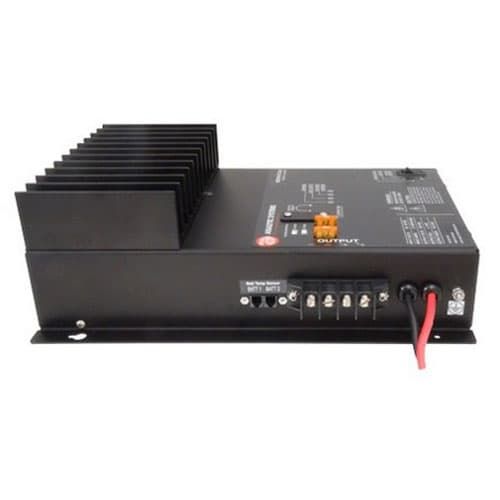

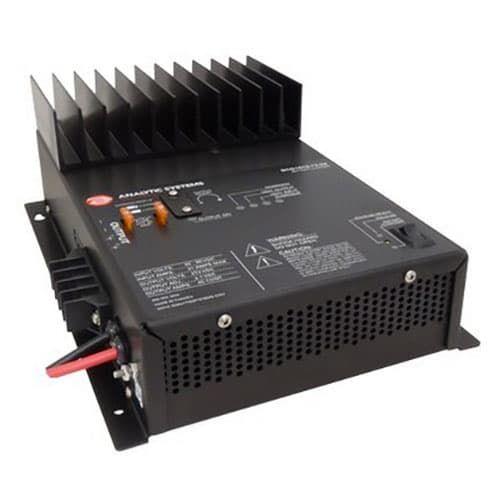

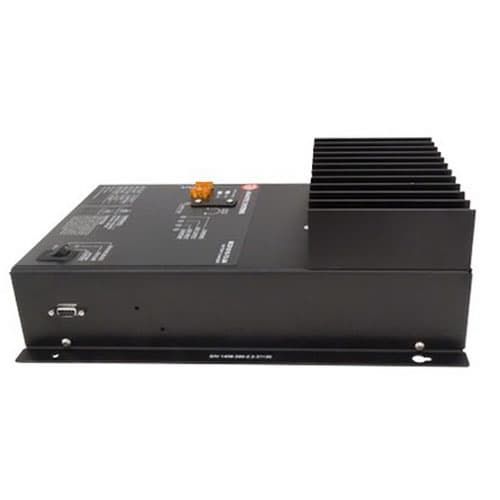

The model BCD1015 DC Battery Charger charges 12V, 24V, or 48V battery banks (1 or 2 banks) from a 24, 36, 48 or 72 volt DC power source. The reliable Current Mode switching design offers power and reliability in a compact package. The low ripple charging current and standard equalize cycle greatly increases the lifetime of expensive battery systems. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting, reverse battery hookup protection and output short circuit protection with automatic recovery. The output voltage is easily adjusted 1.0 volts above or below the standard output voltage to accommodate special charging requirements. Optional features include a Digital Volt/Ammeter, Remote Control Panel, and 19" or 23? Rack Mount configurations. We are confident that you will get many years of reliable service from this DC Battery Charger.

Function	Battery Charger
Conversion	DC to DC
Power Level	1000
Input Volts	20 - 35 VDC
Output Volts	12 VDC
Output Amps Continuous	60
Input/Output Isolation	Yes
Technology	Analog
Charging Stages	3
Temperature Compensation	Yes
Equalize	Yes
Battery Banks	2
Product Series on website	BCD1015
Option Codes	'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'R' 19 Inch Rackmount, 'Q' 23 Inch Rackmount, 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested
