Features

• Power Factor Corrected AC Input
• Fast and accurate charging
• Can function as a power supply
• Visual indicators for operation and errors
• Five year parts and labour warranty
• Product Manual | Download

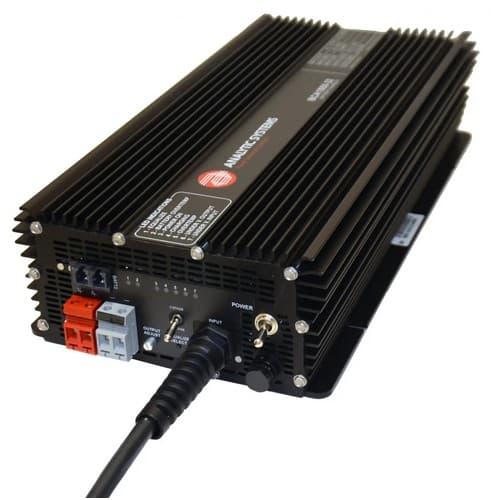

The BCA1050 Series battery charger provides up to 1000 watts of charging power to a one or two bank battery system at 12, 24, 32, 36, 48 or 72 (Rail) VDC from an 85 264 VAC source.

The BCA1050 Series chargers (BCA) and power supplies (PWS) are designed to supply a DC load or charge a battery at 12, 24, 32, 36, 48 or 72 (Rail) VDC. The 1050 family provides up to 1000 watts of precision power, while the 1550 family can supply up to 1550 watts. These 1050 and 1550 families are identical to their previous models (1005 and 1505, respectively) in form, fit, and function as a direct drop in replacement.

Internally, the recently updated design incorporates a brand new Power Factor Corrected (PFC) Input Stage. The PFC input stage increases the efficiency over the previous auto-switching technology and eliminates the dead spot between 110 and 220 VAC input allowing the power supply to run continuously from 85 264 VAC at 45 65 Hz. Additionally, heavy input and output filtering reduce EMI to extremely low levels to prevent radio interference. Extra features include visual indicators for low input voltage, charging and over temperature.

Function	Battery Charger
Conversion	AC to DC
Power Level	1000
Input Volts	85 - 264 VAC, 110 VAC, 110/220 VAC, 220 VAC
Power Factor Corrected (PFC)	Yes
Output Volts	32 VDC
Output Amps Continuous	30
Input/Output Isolation	Yes
Technology	Analog
Charging Stages	3
Temperature Compensation	Yes
Equalize	Yes
Battery Banks	2
Product Series on website	BCA1050
Option Codes	'Z' No Conformal Coating (Any Model), 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'M' Military Rugged, 'E' European ROHS compliant
