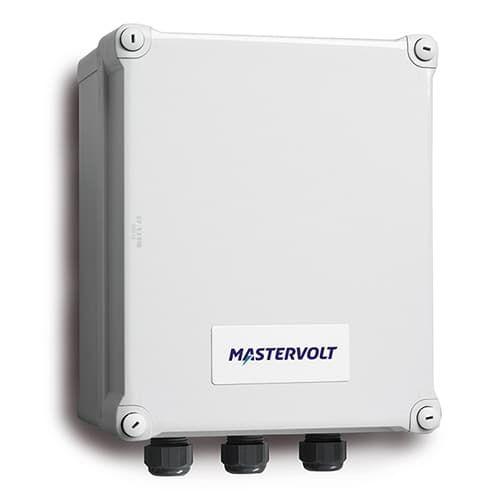

Mastervolt, 55003500, Masterswitch 25 kW (230 V)
- Model: 55003500
- GTIN: 00816882023071
- Manufactured by: Mastervolt
- Condition: New
-
Estimated Delivery:
Nov 23rd - Nov 29th
- Estimated Delivery: 2 to 3 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Price:
$2,183.29 $1,679.45
Masterswitch 25 kW (230 V)- Two AC inputs, for example grid power and generator.
- One outlet to AC power group.
- Automatic switching.
- Power transfer up to 25 kW, input/output from 20 to 125 A.
- The Masterswitch Fuses version includes circuit breakers.
- Product Specifications | Download
- Product Specifications | Download
| General specifications |
| Nominal input voltage | 230 V (50/60 Hz) |
| Input voltage range | 200-250 V |
| Number of inputs | 2 |
| Number of outputs | 1 |
| Dimensions, hxwxd | 291 x 241 x 168 mm11.5 x 9.5 x 6.6 inch |
| Weight | 3.8 kg8.4 lb |
| Technical specifications |
| Connection for remote control | no |
| LED indication on enclosure | no |
| Nominal input current generator | 125 A |
| Nominal input current grid | 125 A |
| Generator input switch | no |
| Time delay generator input | 0-10 sec (adjustable) |
| Nominal current power output | 125 A |
| Automatic circuit breakers | no, system dependent |
| Power consumption (AC all inputs) | 26 W |
| Power consumption (only inverter power) | 0 W |
| Transfer time | switch on 12-22 ms / switch off 4-19 ms |
| Temperature range (specified) | -5 C to 60 C23 to 140 F |
| Temperature range (ambient temp.) | -25 C to 70 C-13 to 158 F |
| Temperature range (storage/non operating) | -60 C to 80 C-76 to 176 F |
| Relative humidity | max. 95%, non condensing |
| Frequency watch | no |
| Cable size | 4-50 mm/AWG 10-1/0 |
| Protection degree | IP55 |
| MasterBus compatible | no |
