The images shown are for illustration purposes only and may not be an exact representation of the product

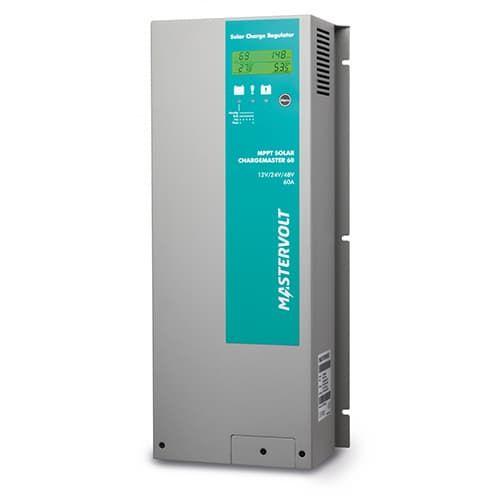

Mastervolt, 131906000, SCM60 MPPT-MB

  • Model: 131906000
  • GTIN: 00816882020469
  • Manufactured by: Mastervolt
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Lead Time To Ship May Vary
Price:

$1,228.03 $944.64

Manufacturer Info

The SCM60 MPPT-MB is Mastervolts largest MPPT solar charge regulator. With 600 to 3600 Wp in solar panels, connections for 12, 24 and 48-volt battery banks and an integrated MasterBus connection, this Solar ChargeMaster is perfect for large and medium-sized systems.

The innovative technology in the Mastervolt MPPT charge regulators increases the efficiency of the solar panels. The SCM60 MPPT-MB charges your batteries up to 30% faster than PWM regulators - with the same number of panels.

MPPT charge regulator for all solar panels
Besides the traditional 36 and 72-cell panels, the SCM60 MPPT-MB is also ideal for the inexpensive 60-cell panels. A maximum input voltage of 145 V makes it possible to connect several panels in series, reducing the required cable length, installation time and power loss significantly.

Robust, easy to use, safe and flexible
The SCM60 MPPT-MB is suitable for all battery types, including Mastervolt Lithium Ion. The charging profiles for all types of batteries are pre-programmed and can be selected via the display or via MasterBus. The SCM60 MPPT-MB is very quiet and equipped with a clear and user-friendly display. The built-in protection against overload, high/low battery voltage, overheating, short circuits and reverse polarity ensures that safety comes first. Moreover, the SCM60 MPPT-MB has a sturdy casing and is protected against water spray in conformity with IP23.

The smart logic of MasterBus
The MasterBus platform brings advanced system functions within reach and makes it possible to follow a complete energy system on a single display. The intelligent one-cable system simplifies the cabling, allowing valuable savings in space and weight. Whats more,you can automate your systems and adapt them to your needs.

Architects, builders and contractors also benefit, as there is less material, less work and less fiddling, while testing is easy. There is also a choice of ten languages. The user interface is identical for all Mastervolt products, whether battery chargers, inverters, Combis, batteries or other devices.

More comfort and independence
Use the power of MasterBus to switch on your water heater as soon as the battery is fully charged. Or link the Solar ChargeMaster via MasterBus to a Mastervolt Lithium Ion battery, removing the need for the disconnect relays usually required for this type of battery. The possibilities are endless.
  • Very high efficiency for faster charging of the batteries
  • Stable, accurate Mastervolt Maximum Power Point Tracker
  • Up to 30% faster charging compared with PWM technology.
  • Designed for inexpensive 60-cell panels.
  • Capacity for solar panel configurations from 600 to 3600 Wp.
  • Automatic 12/24/48 V detection.
  • Flexible charging characteristics.
  • Battery temperature sensor for long lifespan.
  • Suitable for all battery types, including Mastervolt Lithium Ion.
  • No need for Lithium Ion safety relay.
  • Monitoring and control via MasterBus.
  • Large and bright display.
  • Safe, very quiet operation.
  • Robust casing, suitable for humid environments (IP23)
  • Product Specifications | Download
Specifications battery charger
Max. charge current at 40 C / 104 F60 A
System voltage (battery)12/24/48 V auto select
Battery typesAGM, gel, wet, Lithium Ion
Battery temperature sensoryes
Lithium Ion protectionyes, via MasterBus connection
Switchable output (max. current)via MasterBus
Energy consumption (night)< 1 mA
Specifications solar input (DC)
Nominal PV current at 40 C / 104 F50 A
PV start voltage (12/24/48 V)15 V/27 V/51 V
Nominal PV voltage (12 V)13.2-115 V
Nominal PV voltage (24 V)26.4-115 V
Nominal PV voltage (48 V)52.8-115 V
Max. PV voltage (Tmin)145 V
Max. PV power (12 V)900 Wp
Max. PV power (24 V)1800 Wp
Max. PV power (48 V)3600 Wp
Max. efficiency> 98 %
Static MPP efficiency99.9 %
Communication & monitoring
CommunicationMasterBus
General specifications
Coolingpassive
Display/read-outbacklit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting
Dimensions, hxwxd398 x 168 x 104 mm15.7 x 6.6 x 4.1 inch
Weight5.5 kg12.1 lb
Alarmsvia MasterBus
Protection degreeIP23
Grounding(-) terminal
Technical specifications
TechnologyMPPT (Max. Power Point Tracker)
Temperature range (ambient temp.)-20 C to 55 C-4 to 131 F
Cable sizemax. 35 mm Litz wire
Protectionsover temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients
Relative humidity95% non-condensing
MasterBus compatibleyes
