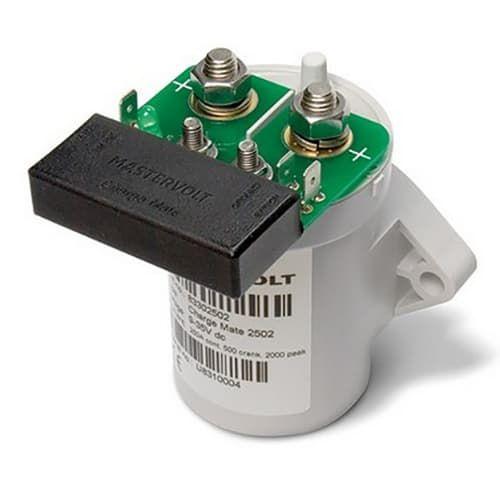

The Mastervolt Charge Mate is an automatic battery relay which connects two battery banks when the voltage rises above a pre-set value for at least 5 seconds allowing these battery banks to be charged simultaneously. When the voltage drops the battery banks will be isolated again.

This auto mode is the default setting when no optional remote is connected. An extra mode is Start Assist. In this mode a single push of a button connects the extra bank to the main battery bank for assistance of the main bank by the extra bank. The connection will be disconnected after 30 seconds.

The Charge Mate gives accurate information about the connection state of the batteries. An unlit LED indicates an open relay. When one of the batteries is being charged the LED will start to flash slowly to indicate it is counting to 30 seconds before closing the relay. When closed the LED will be lit continuously.

• Product Specifications | Download

General specifications		General specifications
Battery voltage	12/24 V
Cont. power	500 A
Number of modes	on off auto start assist
Dimensions hxwxd	90 x 80 x 85 mm 3.5 x 3.1 x 3.3 inch
Weight	0.65 kg 1.4 lb
Technical specifications		Technical specifications
Power consumption (DC side)	switch open: < 1 mA at 12/24 V
Inrush current (250 ms)	2000 A
Switch on voltage	13-15 V (12 V) / 26-30 V (24 V)
Switch on delay	30 seconds
Switch off voltage	< 12.25 V... > 15 (12 V) / < 25.5... > 30 V (24 V)
Switch off delay	3 minutes
Temperature range (ambient temp.)	-40 C to 60 C -40 to 140 F
Protection degree	IP21
