Manufacturer Info
The AC power supply from shore generator or inverter has to be perfectly managed for safety and to ensure your valuable equipment remains undamaged.
Mastervolt gives you the option to switch automatically between available power sources. The Masterswitch will connect the output to the highest priority input if available. Combinating power sources becomes possible for high power consumption situations such as when you want to do the laundry and cook at the same time with a limited shore or generator power supply.

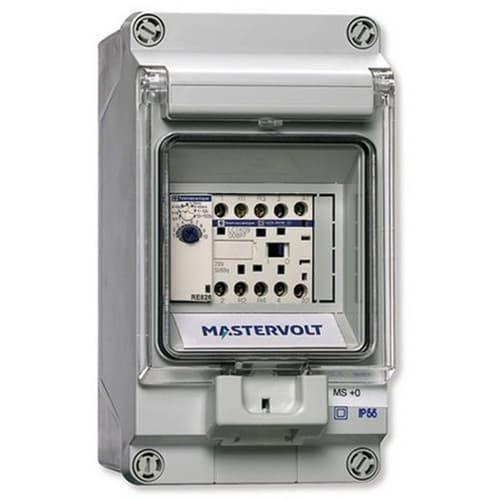

This lightweight Masterswitch with two inputs and one output functions as junction in your 120 & 230 V onboard system. The Masterswitch offers the comfort and safety you need. The simple and effective solution!
Mastervolt gives you the option to switch automatically between available power sources. The Masterswitch will connect the output to the highest priority input if available. Combinating power sources becomes possible for high power consumption situations such as when you want to do the laundry and cook at the same time with a limited shore or generator power supply.
This lightweight Masterswitch with two inputs and one output functions as junction in your 120 & 230 V onboard system. The Masterswitch offers the comfort and safety you need. The simple and effective solution!
- Product Specifications | Download
| General specifications | ||
| Nominal input voltage | 120 V (50/60 Hz) | |
| Input voltage range | 100-125 V | |
| Number of inputs | 2 | |
| Number of outputs | 1 | |
| Dimensions hxwxd | 200 x 110 x 115 mm 7.9 x 4.3 x 4.5 inch | |
| Weight | 1.2 kg 2.6 lb | |
| Technical specifications | ||
| Connection for remote control | no | |
| LED indication on enclosure | no | |
| Nom. input current generator | 25 A | |
| Nom. input current grid | 25 A | |
| Generator input switch | no | |
| Time delay generator input | 0-10 sec (adjustable) | |
| Nom. current generator output | 25 A | |
| Automatic circuit breakers | no system dependent | |
| Power consumption (AC all inputs) | 7 W | |
| Power consumption (only inverter power) | 0 W | |
| Transfer time | switch on 12-22 ms / switch off 4-19 ms | |
| Temperature range (specified) | -5 C to 60 C 23 to 140 F | |
| Temperature range (ambient temp.) | -25 C to 70 C -13 to 158 F | |
| Temperature range (storage/non operating) | -60 C to 80 C -76 to 32 F | |
| Relative humidity | max. 95% non condensing | |
| Frequency watch | no | |
| Cable size | 0.5-10 mm/AWG 20-7 | |
| Protection degree | IP55 | |
| MasterBus compatible | no | |
