Mastervolt, 85001300, IVET 13

  • Model: 85001300
  • Manufactured by: Mastervolt
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Lead Time To Ship May Vary
Price:

$4,777.19 $3,674.76

Manufacturer Info

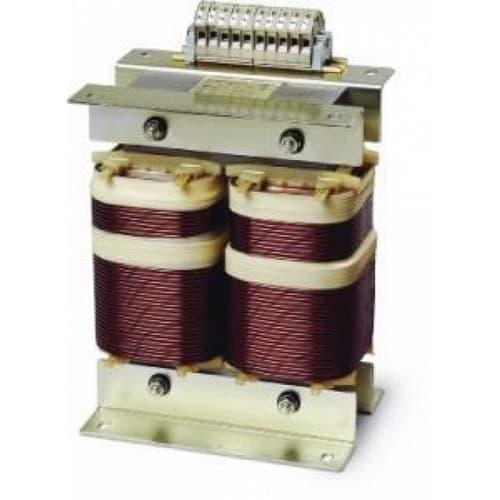

High-output E-core isolation transformer without casing, for self installation. The product is multi tap, meaning you can handle 120/230/240 V going in and out.

Mastervolt recommends to install the IVET heavy-duty isolation transformer with Soft Start. Soft Start suppresses the inrush current from the transformer and prevents the power fuse from blowing.
General specifications
Output voltage (5%)120/220/240 V
Output frequency range45-65 Hz
Input voltage range110/220/240 V
Nominal input current (230 V)57 A
Input frequency range45-65 Hz
Efficiency> 93 %
Power13.000 W
Dimensions, hxwxd490 x 320 x 230 mm19.3 x 12.6 x 9.1 inch
Weight90 kg198.4 lb
Technical specifications
TechnologyE-core
Earth leakage switchno
No-load power consumption< 10 W
Temperature range (ambient temp.)0 C to 40 C, derating power > 40 C32 to 104 F
Relative humiditymax. 95%
Protection degreeIP00
Coolingnatural cooling
Soft startno
MasterBus compatibleno
