Manufacturer Info

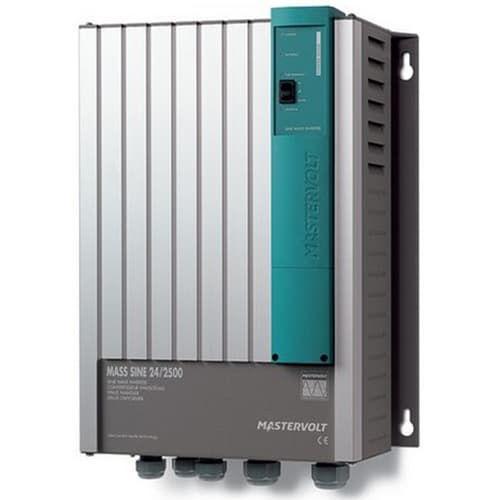

Mass battery chargers sine wave inverters and DC-DC converters are designed for the toughest conditions for professional semi-professional and recreational purposes. Even under the most extreme conditions the products from the Mass series operate faultlessly giving you round-the-clock output when necessary. The sustainability and technologies that underpin the Mass concept have long been proven in practice. With an MTBF of 280000 hours at full capacity and 24/7 use the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply. You can always rely on their proven and technically advanced components.
Making the best even better
The reliability and long lifespan of Mastervolt s battery chargers sine wave inverters and DC-DC converters have been established beyond doubt over the past decade. While the Mass products have evolved with the latest technological developments the dimensions and connections have remained the same. As a result it is exceptionally easy to replace one unit with another with only negligible downtime.
Mastervolt Green by Heart
As part of our constant search for eco-friendly and long-lasting solutions Mastervolt has developed the Green by Heart programme. Its impact on the Mass battery chargers Mass Sine inverters and Mac & Magic DC-DC converters include:
Making the best even better
The reliability and long lifespan of Mastervolt s battery chargers sine wave inverters and DC-DC converters have been established beyond doubt over the past decade. While the Mass products have evolved with the latest technological developments the dimensions and connections have remained the same. As a result it is exceptionally easy to replace one unit with another with only negligible downtime.
Mastervolt Green by Heart
As part of our constant search for eco-friendly and long-lasting solutions Mastervolt has developed the Green by Heart programme. Its impact on the Mass battery chargers Mass Sine inverters and Mac & Magic DC-DC converters include:
- An exceptionally effective use of the consumed input current (cos phi) > 0.98!
- Faster charging of batteries even with when the input current is limited.
- Use of top quality components with a long lifespan.
- Savings in weight and space.
- Fewer installation materials.
- Product Specifications | Download
| General specifications | ||
| Output voltage ( 5%) | 230 V 50 Hz ( 0.01 Hz) | |
| Output waveform | true sine | |
| Nom. battery voltage | 24 V | |
| P30 power at 40 C cos phi 1 | 2500 W | |
| Cont. power at 40 C cos phi 1 | 2000 W | |
| Peak load | 5000 W | |
| AC connection | internal | |
| Efficiency | 92 % | |
| Display/read-out | LED display | |
| Min. battery capacity | > 200 Ah | |
| Dimensions hxwxd | 420 x 318 x 130 mm 16.5 x 12.5 x 5.1 inch | |
| Weight | 14.6 kg 32.2 lb | |
| Approvals | CE E-mark ABYC A-31 | |
| Technical specifications | ||
| Technology | HF switch mode | |
| Low battery voltage switches off at | 19 V 0.5 V | |
| Low battery voltage switches on at | 22 V 0.5 V | |
| High battery voltage switches off at | 33 V 0.5 V | |
| High battery voltage switches on at | 31 V 0.5 V | |
| Max. ripple on DC (battery) | 5% RMS | |
| Input current (nominal load) | 115 A | |
| No-load power consumption (ON mode) | 250 mA 6 W | |
| No-load power consumption (standby mode) | 25 mA 0.6 W | |
| Min. DC fuse (slow blow) | 160 A | |
| Min. cable size | 50 mm | |
| Harmonic distortion typical | < 5% | |
| Cos phi | all power factors allowed | |
| Transfer system | the Masterswitch and Systemswitch can be connected to all sine wave inverters | |
| Temperature range (ambient temp.) | -25 C to 80 C derating > 40 C -13 to 176 F | |
| Cooling | natural/forced | |
| Sound level | 48 dBA at 1 mtr | |
| Protection degree | IP23 | |
| Protections | over temperature over load short circuit high battery low battery | |
| MasterBus compatible | yes using a MasterBus Inverter Interface or AC power analyser | |
