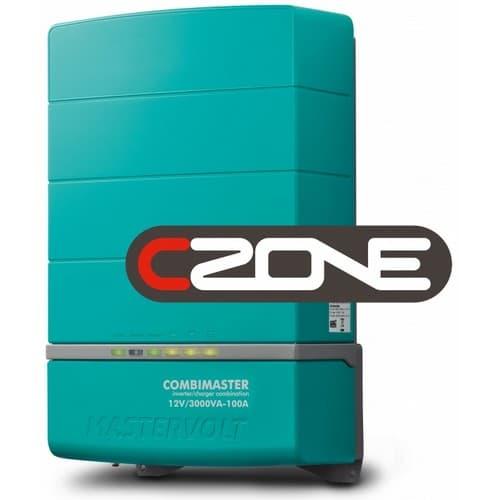

The images shown are for illustration purposes only and may not be an exact representation of the product

Mastervolt, 35013000, CombiMaster 12/3000-100 230V

  • Model: 35013000
  • GTIN: 00816882021862
  • Manufactured by: Mastervolt
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Lead Time To Ship May Vary
Price:

$2,617.71 $2,013.62

Manufacturer Info

CombiMaster 12/3000-100 (230 V)

Unmatched performance at an unprecedented price

Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don't let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!

With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you're connected to a weak land line or small generator.

The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.

Remote Control and Monitoring options
  • MasterBus compatible via SmartRemote or EasyView 5 display.
  • CZone / NMEA 2000 compatible via Touch 5 or Touch 10 display.
  • NMEA 2000 compatible via 3rd party multifunctional display.
Features
  • Most compact and lightweight Combi in its class.
  • Reliable, hum-free and longer operation from your batteries.
  • Starts even the heaviest and most sensitive loads.
  • Intelligent 3-step+ battery charger for faster and safer charging.
  • Automatic switching between mains and inverter mode.
  • Power Assist prevents blown mains fuses.
  • Generator compatible.
  • Integrated CZone, MasterBus and NMEA 2000 communication.
  • Quick installation with heavy duty connections.
  • E-mark certified.
  • Product Specifications | Download
Specifications sine wave inverter
Nominal DC voltage12 V (10.2-16 V)
Output voltage230 V
Output frequency50/60 Hz (configurable)
Output waveformtrue sine
Continuous power at 40 C / 104 F, cos phi 13000 VA / 2600 W
Peak power (30 sec)4500 VA / 3900 W
Surge power (5 sec)6000 VA / 5200 W
Max. efficiency93 %
Battery no-load power consumption30 W (on mode) / < 1 mA (off mode)
Energy saving mode consumption10 W
Synchronise with mainsyes
Specifications battery charger
Input voltage range170-280 V
Max. input current10 A (adjustable)
Max. charge current at 40 C / 104 F100 A at 14,25 V (configurable)
Battery temperature sensoryes, included
Battery voltage senseautomatic compensation
Specifications transfer system
AC input25 A (switched)
AC output38 A
AC input fuseyes
Transfer speed10 ms
Transfer voltage rangewide: 90-280 V / narrow: 170-280 V
Transfer frequency range40-65 Hz
General specifications
Galvanic isolationyes
Display/read-outLED display
Dimensions, hxwxd 448 x 284 x 155 mm 17.6 x 11.2 x 6.1 inch
Weight 9.3 kg 20.5 lb
ComplianceCE, E-mark, AZ/NZS
Technical specifications
Charge characteristicIUoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable
Recommended battery capacity300-800 Ah (based on gel batteries, may differ for other types)
Ground relayyes, configurable by means of mechanical jumper
Temperature range (ambient temp.) -25 C to 60 C, derating > 40 C -13 F to 140 F
Coolingvario fan
Protection degreeIP23 (vertical mounting)
Safety classIEC protection class I
Humidity protectionconformal coating, max. 95 % relative humidity, non condensing
Protectionsover-temperature, overload, short circuit, high/low battery voltage
Power Assistyes, supports AC input with power from the battery
Power Sharingyes, allows you to select AC Input fuse setting
MasterBus compatibleyes
CZone / NMEA 2000 compatibleyes
