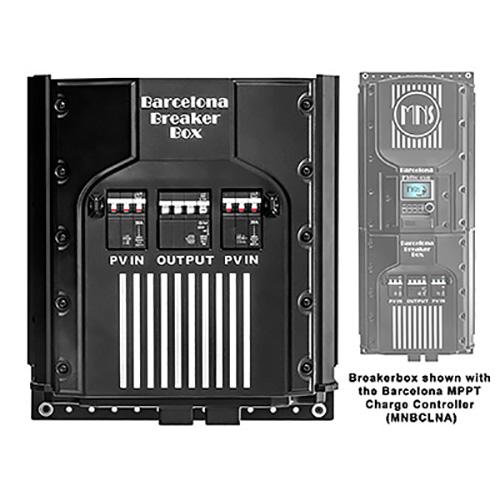

The Barcelona breaker box (MNBARCELONA BREAKER BOX) The breaker box includes a 200 amp breaker for the battery side as well as dual 30 amp breakers for the pv inputs. It is made of die cast aluminum and powder coated to match the Barcelona.
- Construction - Powder Coated Die Cast Aluminum
- Battery Breaker - 200A/80VDC
- PV input Breaker - 2@ 30A/600VDC
- Maximum Wire Size - Input: 12-4AWG, Output 14-00AWG
- Terminal Temperature Rating - 75C
- Battery Over Voltage Protection - Standard using remote trip PV breakers controlled by MPPT
- Weight and Dim - Shipping 21”x16”x12” 17lbs, Actual 15.9”x13”x8.7” 13lbs
- Agency Listings - ETL listed to UL1741
- Listed for US and Canada
- Barcelona and Hawke's Bay Breaker Boxes | Download
- ATM MNBCLNA MNHAWKES BAY 90 MNHAWKES BAY-120 | Download
- ATM MNBCLNA BB MNHAWKES BAY BB125 | Download
- MNBCLNA and MNHAWKE'SBAY ATM | Download
- MNBCLNA-BB Manual-24FEB2023 | Download
