Midnite Solar, CLASSIC 200-SL, MPPT Charge Controller for Solar Only
The images shown are for illustration purposes only and may not be an exact representation of the product

Midnite Solar, CLASSIC 200-SL, MPPT Charge Controller for Solar Only

2 reviews
  • Model: CLASSIC 200-SL
  • Manufactured by: Midnite Solar
  • Condition: New
  • Estimated Delivery: Apr 3rd - Apr 9th
  • In Stock
Price:

$840.84 $646.80

Manufacturer Info

(image for) Midnite Solar

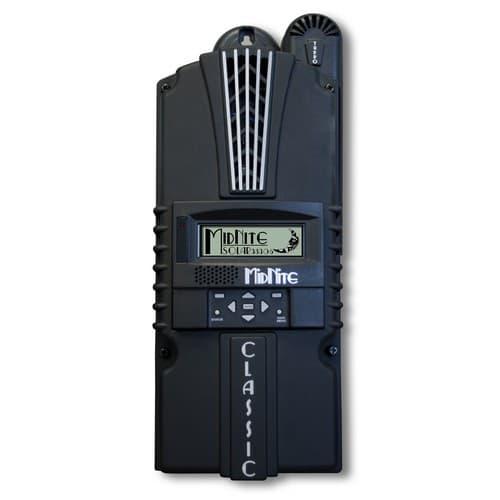

The Classic SL-200 MPPT Charge Controller is a simplified SOLAR ONLY version of the Classic 200 with streamlined menus. The Classic SL-200 has a graphics panel and ground fault but no arc fault or Ethernet capabilities. The Classic SL-200 has a maximum output current of 79 amps, an operating voltage of 200 volts and works with 12 to 72 volt battery systems. As with the whole Classic line, the Classic 200-SL has MidNite's exclusive HyperVOC which extends VOC limits when needed. With a streamlined menu, these SOLAR only MPPT charge controllers are easy to setup and a breeze to install!

Features
  • 200 operating voltage
  • Max current out: 79 amps
  • ETL listed to UL1741 and CSA
  • Terminals are rated for 75 C
  • Type 1 environmental rating
  • Exclusive HyperVOC extends VOC limits
  • 12-72V battery
  • Built in DC-GFP
  • Optional Battery Sensor for temperature correction on battery charging
  • Solar only
  • Warranty - 5 yrs.
  • Listed by ETL for US & Canada
  • CE Certified Listed
  • FCC Class B Listed
  • Made in the USA
  • Home Power | Download
  • The Classic | Download
  • How to use the Classic String Sizing Tool | Download
  • Classic auxiliary control for low voltage disconnect | Download
  • Classic SL Brochure | Download
  • Classic Brochure - Spanish | Download
  • Letter of conformity Classic | Download
  • RCM Supplier's Declaration QEC2R | Download
  • Suppliers Declaration For Use Of The Regulatory Compliance Mark | Download
  • ATM Classic Inductors 2010 | Download
  • ATM Classic | Download

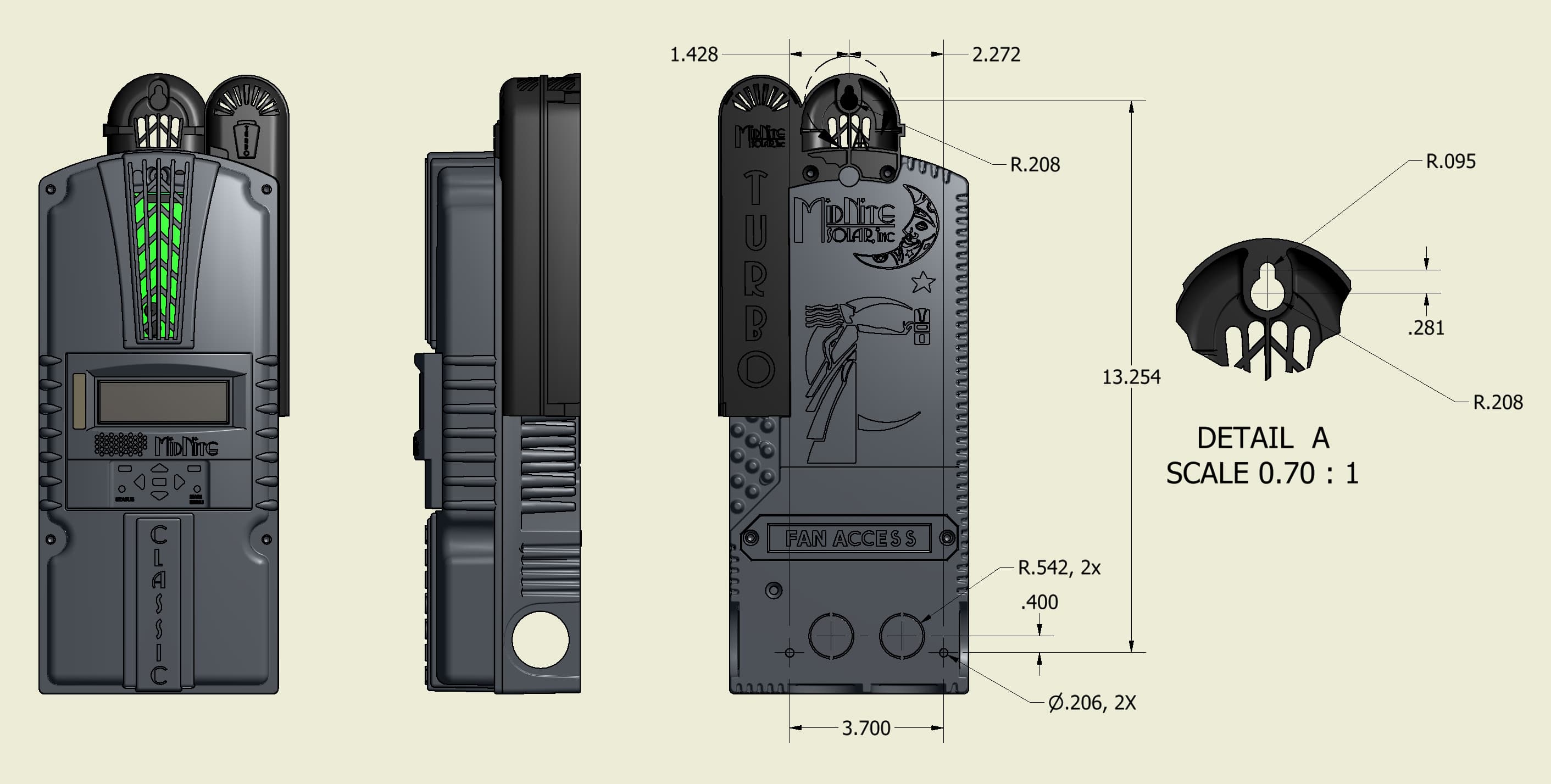

  • Classic Dimensional Drawing | Download
  • Classic MPPT Charge Controller | Download
  • Radio Frequency Interference Charge Controller Comparison Report | Download
  • Classic, Classic Lite and Classic SL Comparison Chart | Download
  • Classic Power Charts | Download
  • Classic Watt-Voltage Table | Download
  • Classic Performance Comparison | Download
  • Classic Manual Rev-H | Download
  • Classic-SL Manual 10-001-3_REV-E | Download
  • Classic Manual - German | Download
  • Classic SL Manual 2056 | Download
  • Classic Manual Rev 1933 | Download
  • Basic Classic-SL Manual (Firmware 19xx) | Download
  • The Classic MPPT Charge Controllers | Download
  • Classic MPPT controller base plate casting | Download
  • Classic display housing with speaker | Download
  • Charge controller bracket for left side of E-Panel or Nottagutter | Download
  • Classic MPPT controller top cover casting | Download
  • Charge controller bracket for right side of E-Panel or Nottagutter | Download
  • Classic-SL Specifications | Download
  • MidNite Solar MODBUS Network Specifications | Download
  • Classic Simple Flow Diagram | Download
  • Classic auxiliary control for low voltage disconnect | Download
  • CLASSIC DIVERSION CONTROL WITH 2 TYPES OF RELAYS REV 5-3-13 | Download
  • Charge Control Wiring | Download
  • HyperVOC | Download
  • Tigo White Paper | Download
To ensure proper start up and MPPT operation, the minimum initial PV input voltage should be at least 30% higher than the highest expected battery voltage.
