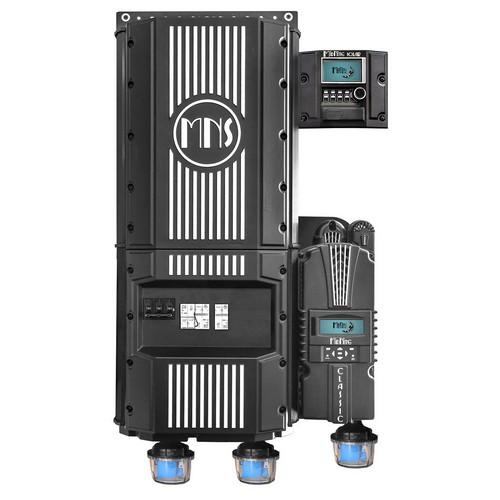

The Rosie Pre-wired Systems were designed by MidNite Solar's engineers with over 100 years of renewable energy off-grid experience. The Rosie Pre-wired Systems have a high frequency, high power design that is light weight and provides pure sine wave power!

• 7000 watts / 48 volt DC
• Extremely lite weight
• Rosie Inverter: 42 lbs.
• Rosie E-panel: 21 lbs.
• Rosie Backpanel: 8 lbs.
• Includes 2 MNSPD-300-AC for Rosie and an additional MNSPD-300-DC per Classic installed
• 2 aux input/outputs
• 120/240 Vac output
• True sine wave inverter with charger
• Zero transfer time
• Quiet forced air cooling
• State Of Charge monitoring with MidNite Wizbang Jr. and MNGP2 display
• Die cast aluminum enclosure
• Auto gen start (two-wire generators) Coming soon
• Battery Temperature Sensor included
• Remote battery voltage senser
• Canbus communication
• Lithium compatible
• 60A transfer relay
• Screened (gecko/mud dauber proof)
• Listed UL1741 and CSA NOTE: CSA pending on breaker boxes
• Designed and built in Arlington, WA USA

Output power (continuous) at 25C	7000VA
Overload 30 min sec at 25C	8400VA
Output power (continuous) at 40C	6000VA
Maximum output current 60 seconds (RMS)	88A
Maximum surge	15,000VA
Output frequency / voltage	60Hz/Output voltage 120 or 120/240VAC
Total harmonic distortion at rated power	<5%
Consumption	30 Watts without search and 7 watts with search
Input DC voltage range	40 to 65VDC
Maximum solar charge	86/78/55A
Maximum charge from AC source	120A (Can be combined with solar charging)
Charge control	Two or Three stage charging
Warranty	7 years
