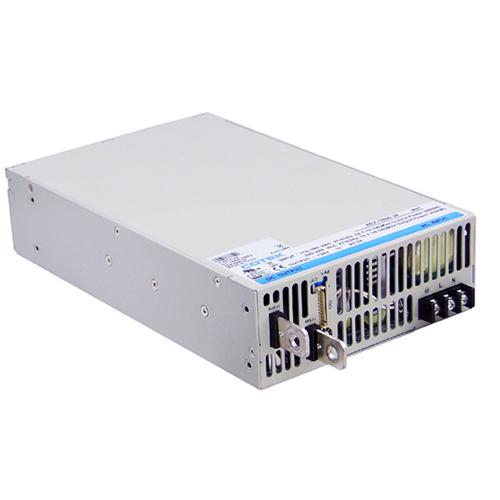

AEK-3000-LV ORingFET Features
- Universal AC input / Full range
- Programmable output voltage & Current (0%~105%)
- High power density 16.3W / inch3
- Built-in Oring Diode
- Remote setting multiple PSU via RS232, RS485 & I2C
- Global control via RS232
- Forced current sharing at parallel operation
- Constant current limit
- Remote ON / OFF, remote sense function
- Protection: OVP, OLP, OTP, Fan failure
- Accessory: CT Series
- Product Datasheet | Download
| Main Features | Programmable output voltage and output current (0%~105%) Parallel connection with current sharing Compact design, high power density, high efficiency Constant current limit suitable for battery charging application |
|---|---|
| Rated Power | AEK-3000-12/15?2400W; AEK-3000-24/30/36/48/60?3000W |
| DC Output Voltage | 12V; 15V; 24V; 30V; 36V; 48V; 60V |
| DC Output Quantity | Single |
| Rated Current | 200A; 160A; 125A; 100A; 83.5A; 62.5A; 50A |
| Ripple & Noise (Max.) | 150mVp-p; 150mVp-p; 240mVp-p; 300mVp-p; 360mVp-p; 480mVp-p; 600mVp-p |
| Input Voltage Range | 90~264VAC, 127~370VDC |
| Inrush Current (Typ.) | 33A / 115VAC, 65A / 230VAC |
| Function | Auxiliary power; Remote ON/OFF control; Power OK signal; Output voltage Trim; Output current Trim |
| Parallel Connection | Yes |
| Protection | Over Load / Over Voltage / Over Temperature / Short Circuit / Fan Failure |
| Cooling | Load and temperature control fan |
| Efficiency | 86%; 89%; 90%; 91%; 91%; 92%; 92% |
| Operating Temperature | -20~60C |
| Storage Temp. & Humidity | -40~85C, 10~95%RH |
| Safety | TUV / UL / CE / UKCA |
| Dimension (WxHxD) | 170x64x280 mm |
| Weight (Net) | 3.9kg |
