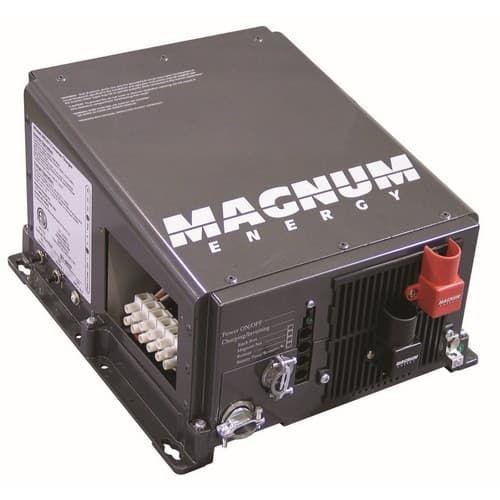

2000W 12VDC Modified Sine Inverter Charger ME Series
ME2012 (ME2012-U, ME2012-F, ME2012-20B-U)
The ME Series Inverter / Charger from Magnum Energy is a modified sine wave inverter designed specifically for rugged mobile applications. The ME Series is powerful, easy-to-use, and best of all, cost effective.
Safe and reliable: The ME Series is ETL Listed to the stringent requirements of UL/cUL 458 and CSA C22.2 #107.1-01, ensuring that the inverter is safe and reliable. Remote Panel
ME2012 (ME2012-U, ME2012-F, ME2012-20B-U)
The ME Series Inverter / Charger from Magnum Energy is a modified sine wave inverter designed specifically for rugged mobile applications. The ME Series is powerful, easy-to-use, and best of all, cost effective.
Safe and reliable: The ME Series is ETL Listed to the stringent requirements of UL/cUL 458 and CSA C22.2 #107.1-01, ensuring that the inverter is safe and reliable. Remote Panel
- ME-ARC, ME-RC, MM-RC
- 15 Amps AC
- 100 ADC
Output Power | 2,000W |
---|---|
Peak Watts | 3,700W |
Warranty | 3 Years |
Output Voltage | 120 VAC |
Output Current | 16.7 amps |
Output Waveform | Modified Sine |
Output Frequency | 60 Hz |
Input Voltage | 12 |
Operating Temp | -20° C to +60° C (-4° F to 140° F) |
Efficiency | 95% |
Weight | 37 lb (16.8 kg) |
Dimensions | 13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm) |
UL Certified | Yes |
Phase | Single |
Topology | Low Frequency |
Input Battery Voltage Range | 9-16 |
Power Factor Corrected, 3-Step, High Output, Temperature Compensated Charger |
Versatile Mounting |
Expanded Transfer Relay |
