Manufacturer Info

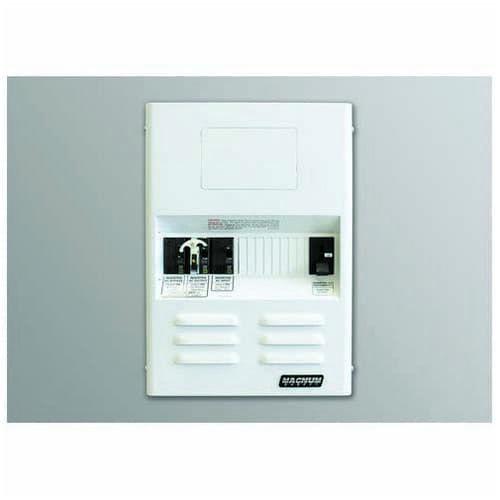

The MMP Mini Magnum Panel is an inclusive, easy-to-install panel designed to work with one Magnum MS-AE, MS-PAE, MS, RD or other non-Magnum inverter / charger.
Features
Features
- Small footprint:only 12.5 wide x 18 tall x 8 deep
- Money-saving design:not only is the MMP less expensive, but it is pre-wired for fast installation, saving labor costs
- Easy access:front-mounted breakers and remote (optional)
- Choices: can be wired for 120 VAC or 120/240 VAC output
- Inclusive:works with non-Magnum inverter / chargers (may require the optional knockout plate for the top of the MMP: an MMP-KP)
- Listed:ETL listed to UL1741 and CSA C22.2 107-01
- DC load breakers:fits either din rail or back-mount DC load breakers.
- Product Manual | Download
- Product Specifications | Download
- One DC breaker 175A or 250A
- One AC bypass breaker 30A dual pole or 60A single pole
- One AC input breaker 30A dual pole or 60A single pole
- 500A/50mv DC shunt
- DC buss bars for battery positive and negative
- Din rail or back mount for optional DC mini breakers will hold up to eight breakers
- Inverter hood
- MS Series
- MSH-RE Series
- MS-PAE Series
- RD Series
