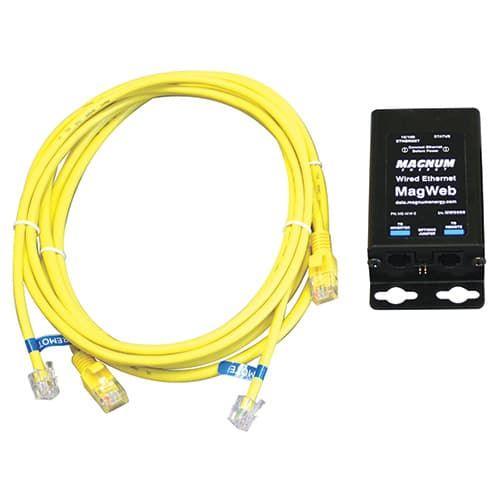

MagWeb Monitoring Kit (Ethernet)
The MagWeb is a powerful and cost effective tool for remotely monitoring Magnum Energy's inverters and accessories. Installed on the Magnum network, the MagWeb provides live Internet monitoring of the inverter, battery monitor, and automatic generator start module. Using your always on Internet connection, the MagWeb makes live and historical conditions available to you through a web browser at data.magnumenergy.com.
Web-based monitoring includes
The MagWeb is a powerful and cost effective tool for remotely monitoring Magnum Energy's inverters and accessories. Installed on the Magnum network, the MagWeb provides live Internet monitoring of the inverter, battery monitor, and automatic generator start module. Using your always on Internet connection, the MagWeb makes live and historical conditions available to you through a web browser at data.magnumenergy.com.
Web-based monitoring includes
- Inverter/charger status, program settings, faults, DC volts, DC amps, invert, and charge LEDs
- Tech menus
- Battery Monitor status
- Auto Gen Start (AGS) status
- Product Manual | Download
- Product Specifications | Download
| Sample Rate Fixed 30 second sample interval, 2,800 measurements per day |
| COMMUNICATION x 802.15.4 XBEE WIRELESS |
| For use with our data.magnumenergy.com service |
| US version 2.4 GHz, 63 mW (+18 dBm) 300’ indoor range, up to one mile line of sight outdoor range |
| International version 2.4 GHz, 10 mW (+10 dBm) 200’ indoor range, up to 2,500’ line of sight outdoor range; special order only |
| Low power version 2.4 GHz, 1 mW (+0 dBm) 100’ indoor range, up to 300’ line of sight outdoor range; special order only |
| Direct Sequence Spread Spectrum (DSSS) |
| RP-SMA connector and included rubber duck antenna |
| Requires 802.15.4 XBee to Ethernet wireless gateay |
| Wireless agency approvals United States (FCC Part 15.247), Industry Canada (IC), Europe, Japan, Australia |
| POWER DRAW |
| MagWeb < 0.1 watts average from Magnum bus |
| Wireless Gateway < 4 watts average from 120 VAC |
| MATERIALS |
| MagWeb case ABS plastic, flame retardant, UL94V-0 |
| Wireless Gateway case Anodized aluminum |
| All parts are RoHS compliant, no lead used in manufacture |
| PHYSICAL SPECIFICATIONS |
| Shipping weight 3 lb (1.36 kg) |
| KIT INCLUDES |
| MagWeb 802.15.4 Manual, communications cable (2-conductor, 10’ twisted pair, telephone standard), mounting screws, antenna |
| Wireless 802.15.4 Gateway Antenna, 10' ethernet cable, AC adapter (Energy Star, North American plug) |
| REMOTE REQUIREMENTS |
| ME-RC or ME-ARC required when monitoring device(s) other than inverter |
