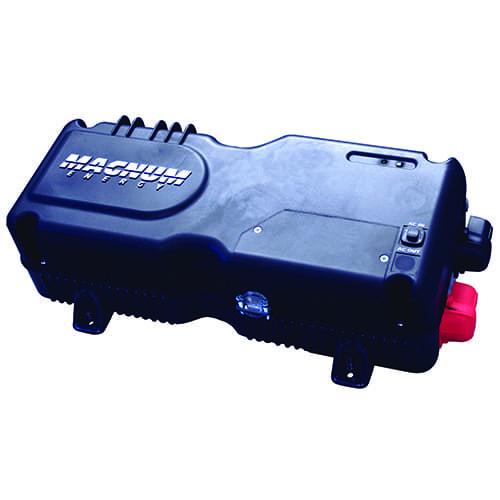

Magnum Energy, MM1512AE, 1500 Watt, 12V Inverter/70 Amp PFC Charger

Model: MM1512AE
Manufactured by: Magnum Energy
Condition: New
Estimated Delivery: Nov 26th - Dec 2nd
In Stock
Out of Stock

Price:

$891.91 $686.09

Would you like to add these items to your order?

	Magnum Energy, ME-ARC50-L, Advanced Remote Digital LCD Display Remote Panel with 50' Cable $420.73 $323.64	Add Magnum Energy, ME-ARC50-L, Advanced Remote Digital LCD Display Remote Panel with 50' Cable to cart
	Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt) $226.97 $174.59	Add Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt) to cart
	Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version $323.52 $248.86	Add Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version to cart

Manufacturer Info

Other products

The MM-AE Series Inverter/Charger from Magnum Energy is a modified sine wave inverter providing a cost effective solution for those with smaller power needs in renewable energy applications.Versatile, easy-to-use, and lightweight, the MM-AE Series provides a reliable base for your energy system.

Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter chargers. It uses less energy from a generator than a standard charger using 25-30% less AC current than standard chargers.

Attractive styling: The modern, hourglass case, paired with the die cast aluminum base combines form with function, creating an attractive unit that uses its base as a heat sink for superior high temperature operation.

Features

Standard transfer relay
Versatile mounting
Fan cooled
High / low battery protection
Current overload protection
Convenient switches
Circuit breaker protection
Battery temperature sensor
Backed by a two-year(24-month) limited warranty
Product Manual | Download
Product Specifications | Download

Available For

Renewable Energy Systems
Off-grid Power
Back-up Power

Output Power	1,500W
Peak Watts	2,100W
Warranty	2 Years
Output Voltage	120 VAC
Output Peak	17amps
Output Current	10amps
Output Waveform	Quasi Sine
Output Frequency	60 Hz
Input Voltage	12
Continuous Output Amps	10amps
Operating Temp	-20 C to +60 C (-4 F to 140 F)
Efficiency	95%
Weight	22 lb (10 kg)
Dimensions	16.6" x 8.4" x 4.7" (42 cm x 21 cm x 12 cm)
UL Certified	No
Phase	Single
Topology	Low Frequency
Input Voltage Range	9 to 16 VDC
