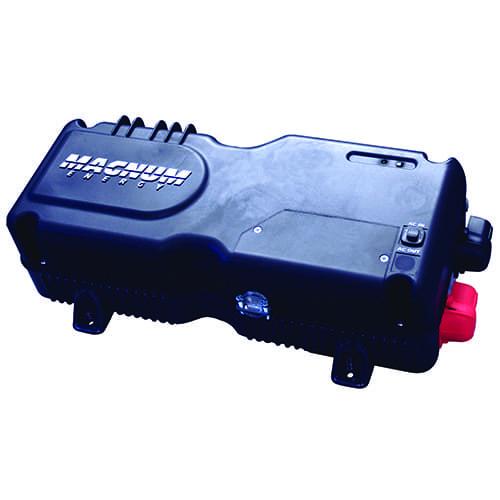

Magnum Energy, MM1012E, 1000 Watt, 12V Inverter/50 Amp PFC Charger

Model: MM1012E
Manufactured by: Magnum Energy
Condition: New
Estimated Delivery: Nov 23rd - Nov 29th
This product is currently on backorder.
Expected Ship Date: Monday 03 February, 2025
In Stock
Out of Stock

Price:

$924.45 $711.11

Would you like to add these items to your order?

	Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version $323.52 $248.86	Add Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version to cart
	Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt) $226.97 $174.59	Add Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt) to cart
	Magnum Energy, ME-ARC50-L, Advanced Remote Digital LCD Display Remote Panel with 50' Cable $420.73 $323.64	Add Magnum Energy, ME-ARC50-L, Advanced Remote Digital LCD Display Remote Panel with 50' Cable to cart

Manufacturer Info

Other products

Magnum Energy now offers the MM-E Series Inverter/Charger for 230 VAC / 50 Hz installations. The MM-E Series comes with all of the features youve come to expect from a Magnum product, including:

Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter chargers.It uses less energy from a generator than a standard charger using 25-30% less AC current than standard chargers.

Battery temp sensor: The standard battery temp sensor monitors temperatures from 0 50C.

Convenient switches: All models come with an on/off inverter-mounted switch with an easy-to-read LED indicator.

Features

Attractive styling
Fan cooled
Versatile mounting
Battery and inverter protection
Product Manual | Download
Product Specifications | Download

Available For

Renewable Energy Systems
Off-grid Power
Back-up Power

Output Power	1,000W
Peak Watts	1,750W
Warranty	Two Years
Output Voltage	220 VAC
Output Peak	21amps
Output Current	5amps
Output Waveform	Quasi Sine
Output Frequency	50 Hz
Input Voltage	12
Continuous Output Amps	5amps
Operating Temp	-20 C to +60 C (-4 F to 140 F)
Efficiency	87%
Weight	23 lb (10.4 kg)
Dimensions	15.0" x 6.5" x 5.0" (38.1 cm x 16.5 cm x 12.7 cm)
UL Certified	No
Phase	Single
Topology	Low Frequency
Input Voltage Range	9-16
