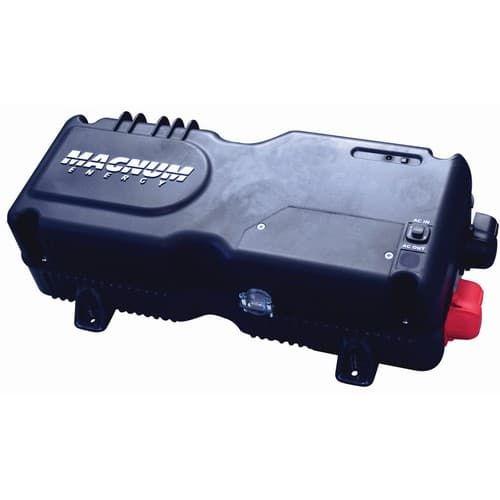

1200W 12VDC Modified Sine Inverter Charger MM Series
MM1212 (MM1212-U, MM1212-F)
The MM Series Inverter / Charger is a modified sine wave inverter providing a cost effective solution for those with smaller power needs in mobile applications. Versatile, easy-to-use, and lightweight, the MM Series provides a reliable base for your energy system.
Safe and reliable: The MM Series is ETL Listed to the stringent requirements of UL/cUL 458 and CSA C22.2 #107.1-01 for mobile use.
Attractive styling: The modern, hourglass case, paired with the die cast aluminum base combines form with function, creating an attractive unit that uses its base as a heat sink for superior high temperature operation. Remote Panel
MM1212 (MM1212-U, MM1212-F)
The MM Series Inverter / Charger is a modified sine wave inverter providing a cost effective solution for those with smaller power needs in mobile applications. Versatile, easy-to-use, and lightweight, the MM Series provides a reliable base for your energy system.
Safe and reliable: The MM Series is ETL Listed to the stringent requirements of UL/cUL 458 and CSA C22.2 #107.1-01 for mobile use.
Attractive styling: The modern, hourglass case, paired with the die cast aluminum base combines form with function, creating an attractive unit that uses its base as a heat sink for superior high temperature operation. Remote Panel
- MM-R, MM-RC, ME-RC
- 12 AAC
- Power Factor Corrected
- 9
- 70 ADC
Output Power | 1,200W |
---|---|
Peak Watts | 2,100W |
Warranty | 2 Years |
Output Voltage | 120 VAC |
Output Current | 10.0 amps |
Output Waveform | Modified Sine |
Output Frequency | 60 Hz |
Motor Starting Capacity | NA |
Input Voltage | 12 |
Operating Temp | -20° C to +60° C (-4° F to 140° F) |
Efficiency | 95% |
Weight | 20 lb (9 kg) |
Dimensions | 16.6” x 8.4” x 4.7” (42 cm x 21 cm x 12 cm) |
UL Certified | Yes |
Phase | Single |
Topology | Low Frequency |
Input Battery Voltage Range | 9-16 |
Standard Transfer Relay |
Versatile Mounting |
Fan Cooled |
Low Battery Protection |
Current Overload Protection |
Circuit Breaker Protected |
Battery Temperature Sensor |
