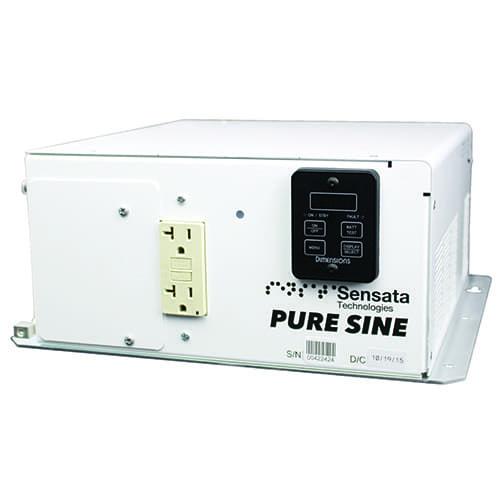

The NP Series is the newest Pure Sine Inverter Charger line from Dimensions. This series is available in 12, 24, and 48VDC input with AC output power ranging from 1000-3600 watts. The Power Factor corrected Charger puts out up to 60-150 amps DC depending on the model. Most models are UL/CUL 458 Listed and feature easy to use DC and AC connections.

Dimensions is well known for its robust products and this new Inverter/Charger takes our quality designs to an even higher level. These units pack a lot of power in a relatively small sized footprint in two chassis sizes and retain their cool with a processor controlled variable speed fan.

The Pure Sine Inverter is built to withstand the high output surge demands of motors, pumps, and other tools while providing high quality power for your sensitive electronic devices. The Charger is Power Factor corrected which means that it will make the most of incoming AC power to efficiently charge your batteries.

Each system comes with an easy to use 7-segment LED display. The display provides status, input/output values, programming, and troubleshooting information. The display can also be used as a remote for use in another part of the vehicle by ordering an extension kit.

Features

• Power Factor Corrected, 3-Step, High Output, Temperature Compensated Charger
• 7-Segment LED Display, Reports I/O Values and Diagnostics
• Easy AC and DC Wiring
• Variable Speed Fan
• Built-In Bypass Switch
• Automatic Short Circuit/Overload Protection
• UL/CUL 458 Listed
• Product Specifications | Download

12NP12	12NP15	12NP18	12NP20	12NP24	12NP30
INVERTER SPECIFICATIONS
Continuous power output at 25 C	1200 VA	1500 VA	1800 VA	2000 VA	2400 VA	3000 VA
Continuous current (amps AC)	10 AAC	12.5 AAC	15 AAC	16.7 AAC	20 AAC	25 AAC
Input current (amps DC)	Up to 133 ADC	Up to 167 ADC	Up to 188 ADC	Up to 214 ADC	Up to 269 ADC	Up to 315 ADC
Peak power (watts)	2500 W	2500 W	3000 W	4500 W	5500 W	8000 W
Peak current (amps AC)	37 AAC	40 AAC	58 AAC	68 AAC	74 AAC	80 AAC
Motor starting rating (hp)	1/2 hp	1/2 hp	3/4 hp	3/4 hp	1 hp	2 hp
Nominal AC output voltage	120 VAC 3%	120 VAC 3%	120 VAC 3%	120 VAC 3%	120 VAC 3%	120 VAC 3%
Output frequency and accuracy	60 Hz 0.05%	60 Hz 0.05%	60 Hz 0.05%	60 Hz 0.05%	60 Hz 0.05%	60 Hz 0.05%
Input battery voltage range	10.5 - 17 VDC	10.5 - 17 VDC	10.5 - 17 VDC	10.5 - 17 VDC	10.5 - 17 VDC	10.5 - 17 VDC
Inverter efficiency (peak)	88%	88%	88%	88%	88%	88%
Total Harmonic Distortion (THD)	< 5%	< 5%	< 5%	< 5%	< 5%	< 5%
Waveform	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
CHARGER SPECIFICATIONS
AC input voltage range	95 - 135 VAC	95 - 135 VAC	95 - 135 VAC	95 - 135 VAC	95 - 135 VAC	95 - 135 VAC
Input current (amps AC)	Up to 9.7 AAC	Up to 13 AAC	Up to 13.5 AAC	Up to 17 AAC	Up to 17.7 AAC	Up to 23 AAC
Output (amps DC)	Up to 65 ADC	Up to 75 ADC	Up to 95 ADC	Up to 115 ADC	Up to 130 ADC	Up to 150 ADC
BYPASS SPECIFICATIONS
Transfer relay (amps AC)	20 AAC	20 AAC	20 AAC	30 AAC	30 AAC	30 AAC
Note: bypass relay is rated at 30 amps for all models
ENVIRONMENTAL SPECIFICATIONS
Operating temperature	-20 C to +65 C (-4 F to 149 F)
PHYSICAL SPECIFICATIONS
Dimensions (l x w x h)	12.2" x 14.6" x 5.8 “	13.5" x 14.6" x 5.8"	12.2" x 14.6" x 5.8 “	12.2" x 14.6" x 5.8 “	13.5" x 14.6" x 5.8"	14.8" x 17.1" x 8"
(30.5 x 37.1 x 14.7 cm)	(34.3 x 37.1 x 14.7 cm)	(30.5 x 37.1 x 14.7 cm)	(30.5 x 37.1 x 14.7 cm)	(34.3 x 37.1 x 14.7 cm)	(37.6 x 43.4 x 20.3 cm)
Weight	40 lb (18.2 kg)	40 lb (18.2 kg)	40 lb (18.2 kg)	40 lb (18.2 kg)	40 lb (18.2 kg)	68 lb (30.9 kg)
GENERAL SPECIFICATIONS
Listings	Listed to UL/cUL 458 E100666 UL File Number
Warranty	Five years
