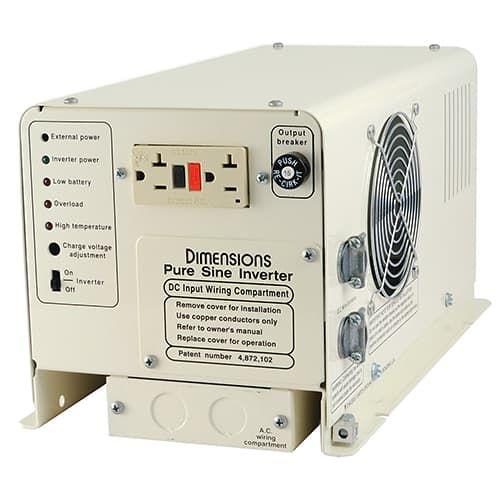

A mainstay of the cable and communications industry, this series of pure sine, low frequency inverters has enjoyed decades of proven dependability in both corporate and public venues. Like the higher wattage series, these units also feature the durability of of an iron core transformer and are supported by the industry leading Dimensions 4 year warranty, which includes 2 years of Advance Replacement.

Specifications

• Output Power: 1,500W
• Peak Watts: 2,880W
• Warranty: 4 Years, Advance Replacement first 2 years
• Output Voltage: 120 VAC
• Output Peak: 24amps
• Output Current: 12amps
• Output Waveform: Pure Sine
• Output Frequency: 60 Hz
• Input Voltage: 12
• Continuous Output Amps: 12amps
• Operating Temp: -20 to 40 C (0 to 104 F)
• Efficiency: Up to 88%
• Weight: 29
• Dimensions: 15.5 x 8.2 x 7.5
• UL Certified: No
• Phase: Single
• Topology: Low Frequency
• Product Manual | Download
• Product Specifications | Download

Features

• Engineered construction and cooling methods
• Thermally-controlled cooling fan
• GFCI outlet protection
• Remote ON/OFF switch hookup
• LED for Inverter power and Low battery
• LED indication for Overload and High temperature on the 12/800N, 12/1200N & 12/1500N
• Automatic electronic short circuit/overload protection
• Automatic high temperature shutdown
• Output circuit breaker
• Automatic low battery shutdown at 10.5 VDC (with inrush delay)
