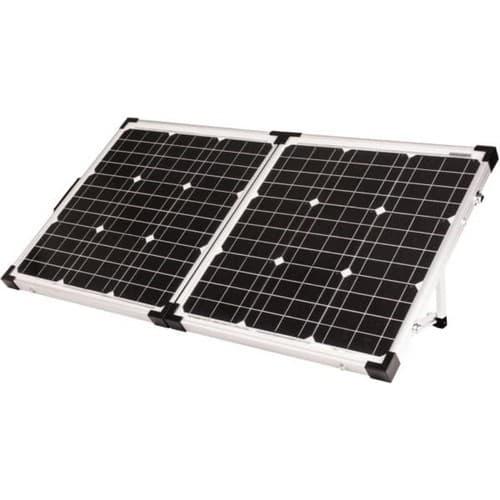

90-watt Portable Solar Kit
GP-PSK-90

Small in size, mighty in charging power! These mobile kits set up quickly and store easily for versatile battery charging on RVs, ATVs or boats.

MODEL: GP-PSK-90
Park in the shade while your kit sits in the sun to charge your batteries!

his 90-watt Portable Solar Kit (PSK) folding solar modules offer some of the most versatile and convenient battery charging options for those who don't want to permanently mount solar to a rooftop or want to supplement a roof top system. The Anderson-style battery charging connectors allow you to quickly interchange the charging accessory to best suite your needs - from maintaining your RV or trailer battery while on the road to trickle charging your car, ATV or boat battery. Adjustable folding legs to maximize solar exposure and for compact easy storage. Multiple charging connectivity options. Includes a heavy duty nylon case for storage protection. They also are a great supplemental solar kit to a roof top kit.

Accessories Included with the Portable Solar Kit
The Portable Solar Kits come with a variety of battery charging options with Anderson-style, quick connectivity.

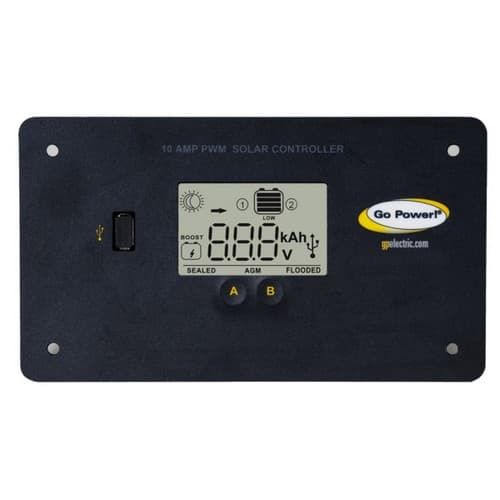

• 10 amp charge controller (GP-PWM-10-FM)

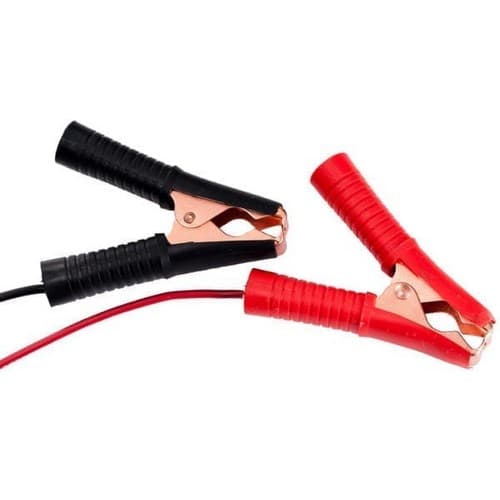

• Battery clamps

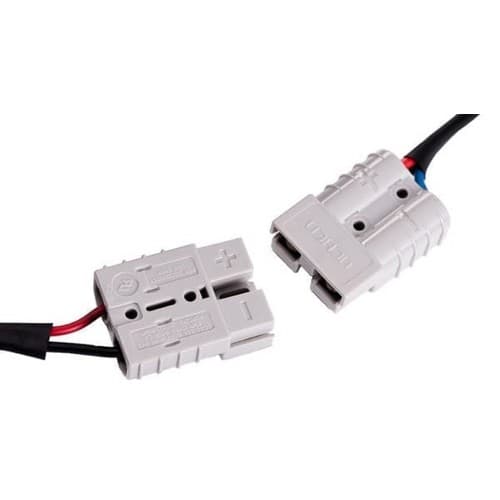

• Quick connectors

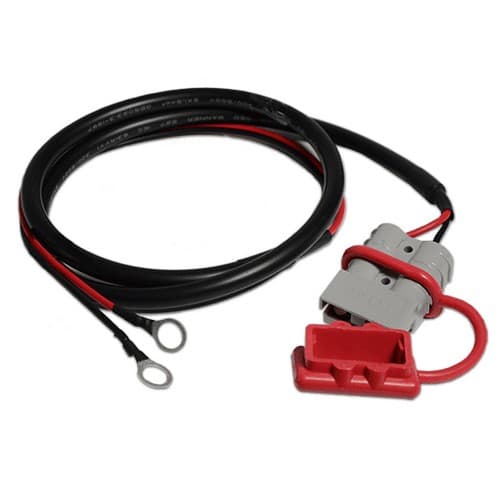

• Ring terminal connectors
• SAE solar plug adapter
• XLR-style solar plug adapter
• 12' of UV 12/2 cable
• Heavy-duty, nylon storage case
• User Manual (GP-PSK-90) | Download
• Spec Sheet (GP-PSK-90) | Download
• Solar Controller User Manual (GP-PWM-10-FM) | Download

Other Accessories Sold Separately.

	GP-PSK-200	GP-PSK-130	GP-PSK-90
Solar cell type	Monocrystalline	Monocrystalline	Monocrystalline
Output power	200 W	130 W	90 W
Rated current	11.4 A	6.7 A	4.6 A
Rated DC voltage	17.6 V	19.7 V	19.8 V
Open-circuit voltage	21.1 V	23.8 V	23.6 V
Connectivity	Battery clamps, Quick connectors, Ring terminal connectors, SAE solar plug adapter, XLR-style solar plug adapter
Solar controller	30-amp Single Bank	10 A, PWM, built-in
Frame type	Silver anodized aluminum frame, built-in adjustable folding legs
Certifications
Dimensions Closed (H x W x D)	39 x 26.4 x 5.6 in / 1005 x 670 x 70 mm	32.5 x 19.9 x 2.8 in / 824 x 503 x 70 mm	21.7 x 19.9 x 2.5 in / 550 x 505 x 65 mm
Dimensions (open)	39 x 52.8 x 2.8 in / 1005 x 1340 x 70 mm	32.5 x 39.8 x 1.4 in / 824 x 1006 x 33 mm	21.7 x 39.8 x 1.3 in / 550 x 1010 x 33 mm
Weight	51 lbs / 23 kg	33 lbs / 15 kg	19.8 lbs / 9 kg
Warranty	25 years (module) / 3 years (controller)

	GP-PWM-30-SB
Nominal System Voltage	12V
Max Solar Array Current	30A
Battery Voltage Range	6V - 15.5V
Max. Solar panel input voltage	28V
Operating Consumption	6mA
Display Consumption	15mA
Temp. Compensation	-13mV/ F / - 24mV/ C
Operating Temperature	40 to 185 F / - 40 to 85 C
Humidity	99% N.C.
Dimensions (H x W x D):	4.25 x 7.48 x 1.38 in; 108 x 190 x 35 mm
Weight	10.6 oz; 300 g
Maximum Wire Gauge:	#4 AWG
Warranty	5 years
Protection	Battery Reverse Polarity, Solar Array Reverse Polarity, Over temperature, Over Current
