200-watt Portable Solar Kit
82708
The largest Go Power! portable solar kit. Sets up quickly for powerful mobile battery charging RV batteries.
Model: GP-PSK-200

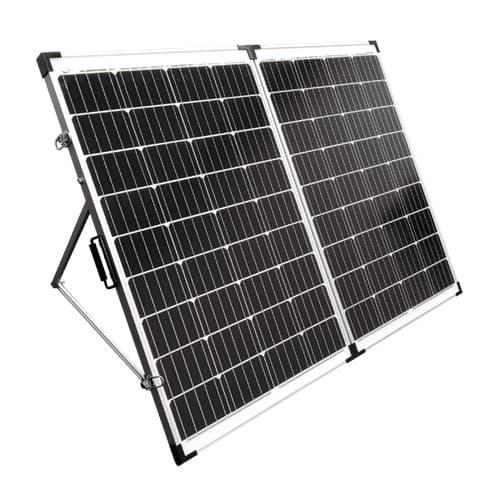

This 200-watt Portable Solar Kit (PSK) folding solar module is ideal for those who don't want to permanently mount solar to a rooftop or want to supplement a roof top system. The Anderson-style battery charging connectors allow you to quickly interchange the charging accessory to best suite your needs - from maintaining your RV or trailer battery while on the road to trickle charging your car, ATV or boat battery. Adjustable folding legs to maximize solar exposure and for compact easy storage. Multiple charging connectivity options. Includes a heavy duty nylon case for storage protection. They also are a great supplemental solar kit to a roof top kit.
Included with the Portable Solar Kit: The Portable Solar Kits come with a variety of battery charging options with Anderson-style, quick connectivity.
82708
The largest Go Power! portable solar kit. Sets up quickly for powerful mobile battery charging RV batteries.
Model: GP-PSK-200
This 200-watt Portable Solar Kit (PSK) folding solar module is ideal for those who don't want to permanently mount solar to a rooftop or want to supplement a roof top system. The Anderson-style battery charging connectors allow you to quickly interchange the charging accessory to best suite your needs - from maintaining your RV or trailer battery while on the road to trickle charging your car, ATV or boat battery. Adjustable folding legs to maximize solar exposure and for compact easy storage. Multiple charging connectivity options. Includes a heavy duty nylon case for storage protection. They also are a great supplemental solar kit to a roof top kit.
Included with the Portable Solar Kit: The Portable Solar Kits come with a variety of battery charging options with Anderson-style, quick connectivity.

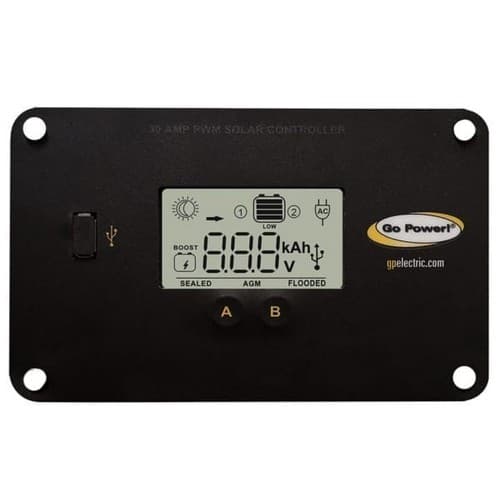

- 30 amp, single bank, charge controller (GP-PWM-30-SB)

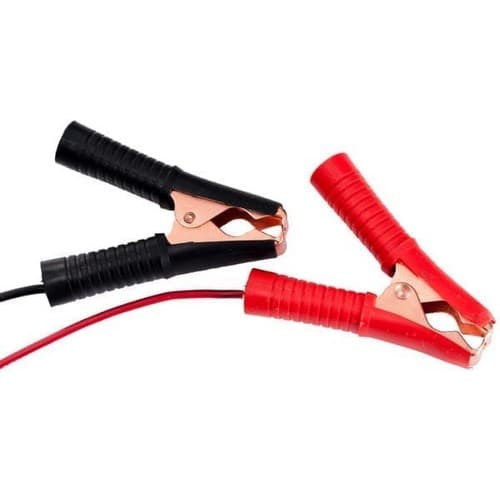

- Battery clamps

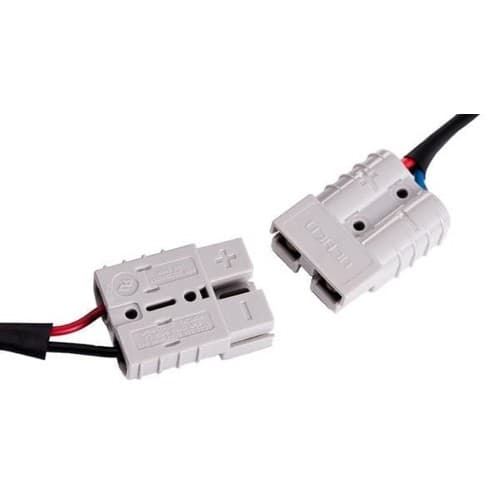

- Quick connectors

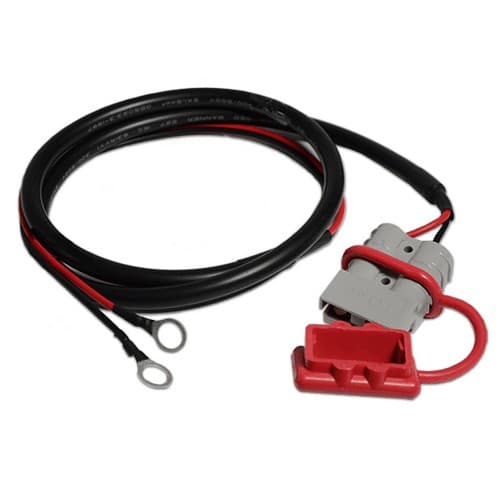

- Ring terminal connectors

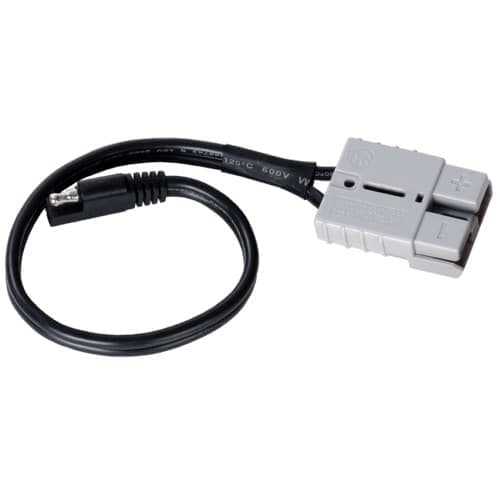

- SAE solar plug adapter
- XLR-style solar plug adapter
- 12' of UV 12/2 cable
- Heavy-duty, nylon storage case
- User Manual (GP-PSK-200) | Download
- Spec Sheet (GP-PSK-200) | Download
- Solar Controller User Manual (GP-PWM-30-SB) | Download
| GP-PSK-200 | GP-PSK-130 | GP-PSK-90 | |
|---|---|---|---|
| Solar cell type | Monocrystalline | Monocrystalline | Monocrystalline |
| Output power | 200 W | 130 W | 90 W |
| Rated current | 11.4 A | 6.7 A | 4.6 A |
| Rated DC voltage | 17.6 V | 19.7 V | 19.8 V |
| Open-circuit voltage | 21.1 V | 23.8 V | 23.6 V |
| Connectivity | Battery clamps, Quick connectors, Ring terminal connectors, SAE solar plug adapter, XLR-style solar plug adapter | ||
| Solar controller | 30-amp Single Bank | 10 A, PWM, built-in | |
| Frame type | Silver anodized aluminum frame, built-in adjustable folding legs | ||
| Certifications | |||
| Dimensions Closed (H x W x D) | 39 x 26.4 x 5.6 in / 1005 x 670 x 70 mm | 32.5 x 19.9 x 2.8 in / 824 x 503 x 70 mm | 21.7 x 19.9 x 2.5 in / 550 x 505 x 65 mm |
| Dimensions (open) | 39 x 52.8 x 2.8 in / 1005 x 1340 x 70 mm | 32.5 x 39.8 x 1.4 in / 824 x 1006 x 33 mm | 21.7 x 39.8 x 1.3 in / 550 x 1010 x 33 mm |
| Weight | 51 lbs / 23 kg | 33 lbs / 15 kg | 19.8 lbs / 9 kg |
| Warranty | 25 years (module) / 3 years (controller) |
| GP-PWM-30-SB | |
| Nominal System Voltage | 12V |
| Max Solar Array Current | 30A |
| Battery Voltage Range | 6V - 15.5V |
| Max. Solar panel input voltage | 28V |
| Operating Consumption | 6mA |
| Display Consumption | 15mA |
| Temp. Compensation | -13mV/ F / - 24mV/ C |
| Operating Temperature | -40 to 185 F / - 40 to 85 C |
| Humidity | 99% N.C. |
| Dimensions (H x W x D): | 4.25 x 7.48 x 1.38 in; 108 x 190 x 35 mm |
| Weight | 10.6 oz; 300 g |
| Maximum Wire Gauge: | #4 AWG |
| Warranty | 5 years |
| Protection | Battery Reverse Polarity, Solar Array Reverse Polarity, Over temperature, Over Current |
