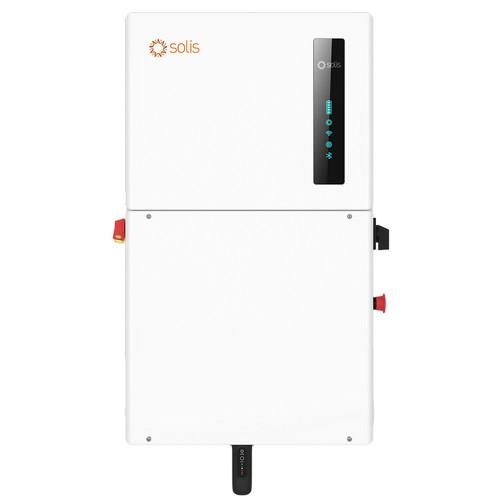

Solis Inverters, S6-EH1P10K-H-US-APST, Hybrid Inverter 10.0KW S6 Single Phase Four Mppt. US Version With Aps Transmitter With 10 Years Warranty

  • Model: S6-EH1P10K-H-US-APST
  • Manufactured by: Solis Inverters
  • Condition: New
  • Estimated Delivery: Nov 22nd - Nov 28th
  • In Stock
Price:

$3,100.78 $2,385.21

Manufacturer Info

(image for) Solis Inverters
S6-EH1P(3.8-11.4)K-H-US

Ordering: S6-EH1P(3.8-11.4)K-H-US
  • APST (APS MLRSD Transmitter)
  • RSS (Tigo MLRSD Transmitter)
  • ENT (Enteligent MLRSD Transmitter)
The S6 (Series 6) hybrid energy storage inverter is the latest Solis US model certified to IEEE 1547-2018, UL 1741 SA & SB, and SunSpec Modbus, providing economical zero-carbon power from an all-weather (NEMA 4X / IP 66) high-efficiency PV string inverter. This new PV / Battery inverter can be dc-coupled to a variety of certified high-voltage Lithium batteries. The S6 hybrid is a grid-forming inverter that supports the latest large PV modules with high current (16 amp) dc inputs at each MPPT.

3.8-11.4kW Energy Storage Inverter
Leading Features
  • Four MPPTs allows for versatile PV array design
  • UL 1741 SB certified, California Rule 21 compliant
  • Maximum PV input current up to 16A per string
  • High DC:AC ratio of 1.6 for more PV power capacity
  • Transfer time is 10ms for all backed up loads
  • SunSpec modbus certified with the latest SunSpec models
  • Provides split-phase backup power without an external ATR
  • Multiple working modes to meet different use case scenarios
  • Third-party tested and validated for product reliability
  • Can be used for both whole-home and dedicated loads backup systems
  • DC to DC battery charging for optimal use of PV-generated energy
  • Reverse DC polarity protection and software-based AFCI detection
  • Offers all of the smart inverter functions detailed in IEEE 1547-2018
  • Solis app allows for remote system configuration and firmware upgrading
  • Generates up to 50A/11.4kW of continuous backup power with just one inverter
  • Capable of frequency-watt control for interoperability with other smart devices
  • NEC 2017 compliant with multiple integrated PLC transmitter options available
  • Fanless design using convection cooling for lower failure rate and complexity
  • Utilizes an energy management system that maximizes efficiency and offers multiple operating modes
  • UL 9540 certified with multiple battery brands to provide up to 150 kWh of storage capacity per inverter
  • Supports generator interconnection and allows the generator to function as the grid source if utility power is lost
  • Datasheet_S6-EH1P(3,8-11,4)K-H-US_USA_V1.2_2023_03 | Download
  • MLRSD Compatibility List_Solis_S6-EH1P(3.8-11.4)K-H-US_v1.6_02.07.22 | Download
  • Battery Compatibility Solis Hybrid S6-EH1P-H-US_v2.6_02.07.23 | Download
  • User_Manual_Solis_S6-EH1P(3.8-11.4)K-H-US_V1.0_11.07.23 | Download
  • Solis_certificate_C22.2&UL 1741(SA)(SB)&UL 1699B&IEEE 1547-2003(-2018)&UL 1998&IEEE 2030.5&SRD 2.0_S6-EH1P(3.8-11.4)K-H-US_US_V01 | Download
