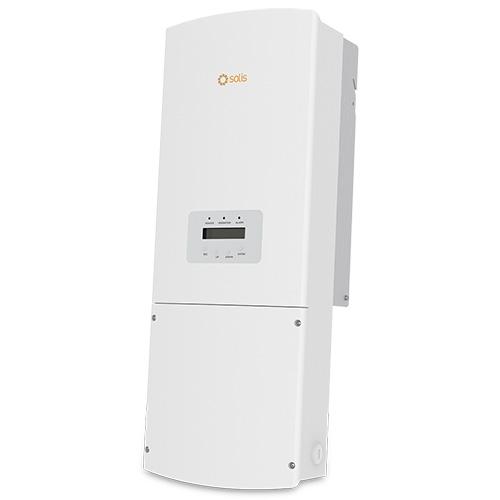

Solis-1P(3.6-5)K-4G-US

Ordering: Solis-1P(3.6-5)K-4G-US-PLUS

• APST(APS MLRSD Transmitter)
• RSS(Tigo MLRSD Transmitter)

Solis 3.6-5KW US plus version single phase string inverters have dual MPPTs which can be utilized in complex design environments. The maximum input current per string is up to 14A, which is compatible with new high-power and bifacial PV modules. A built-in (optional) ANSI C12.20, 0.5 Accuracy Class revenue grade meter will guarantee accurate data recording.

3.6-5kW Single Phase Inverter
Leading Features

• String current up to 14A
• Support module level monitoring
• Max. efficiency 97.7% (CEC efficiency 97.1%)
• CA Rule 21 compliant and UL 1741 SB Certified
• Sunspec protocol with option cellular and WiFi
• Integrated module level rapid shutdown transmitter
• AFCI protection, proactively reduces fire risk
• 10 years standard warranty with extension options
• Fast and dynamic MPPTs and industry-leading DC voltage range
• Optional Built-in Revenue Grade Meter, ANSI C12.20-2010 compliance
• Datasheet_Solis-1P(3.6-5)K-4G-US_USA_V2.3_2023_07 | Download
• Compatible_MLRSD_Receiver_List_Solis-1P(3.6-5)K-4G-US | Download
• Solis_certificate_UL 1741&UL 1741SA(SB)&IEEE 1547&UL 1699B&C 22.2&SRD 2.0_1P(2.5-6)K-4G-US_US_V01(Mark) | Download
• Solis_certificate_IEEE 1547&UL 1741&UL 1699B_1P(1-6)K-4G_US_V0 | Download
• Solis_certificate_Function1_8(E5000_E_5036)_1P(2.5-6)K-4G_1P(6-10)K-4G_(25-40)K_(50-66)K_Phase 3_US | Download
• Solis_certificate_Function2_3(SA17_SA18)_1P(2.5-6)K-4G_1P(6-10)K-4G_(25-40)K_(50-66)K_Phase 3_US | Download
• Zerun RSD_certificate_UL1741_C22,2_1P(1-6)K-4G-US_1P(6-10)K-4G-US_RHI-1P(5-10)K-HVES-5G_US_V01 | Download
• Solis_Manual_(3.6-5)K_4G_PLUS_LW_USA_03212023 | Download

Input DC	Max. input voltage	600 V	Rated voltage	330 V
	Start-up voltage	120 V	MPPT voltage range	90-520 V
	Max. input current	14 A / 14 A	Max. short circuit current	22 A / 22 A
	MPPT number	2	/Max. input strings number	2

Output AC	Rated output power	5 kW	Max. apparent output power	5 kVA
	Max. output power	5 kW	Rated grid voltage	1?/PE, 240 V / 208 V
	Rated grid frequency	60 Hz	Max. output current for 240V grid	20.8 A
	Max. output current for 208V grid	24.0 A	Power Factor	>0.99 (0.8 leading - 0.8 lagging)
	THDi	<3%

Efficiency

Max. efficiency

97.7%

CEC efficiency

97.1%

Protection

DC reverse-polarity protection

Yes

General Data	Dimensions (W*H*D)	13.9*31.9*6.5 in (353*810*165 mm)	Weight	33.1 lbs (15 kgs)
	Topology	Transformerless	Self-consumption (night)	<1W
	Relative humidity	0-100%	Operating ambient temperature range	-13F to 140F (-25C to 60C )
	Storage environment	-13F to 176F (-25C to 80C)	Ingress protection	TYPE 4X
	Cooling concept	Natural convection	Max. operation altitude	13120ft (4000m)
	Compliance	UL1741SB, UL1741SA, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1

Features	DC connection	1 knockout for 3/4" conduit at bottom, side and back, Screw clamp terminal	AC connection	1 knockout for 3/4" conduit at bottom, side and back, OT terminal
	Display	LCD	Communication	RS485, Optional
