Get Optimal Performance From Your PV Panels and Batteries
- Maintenance-free protection for your batteries and solar panels
- Regulated output to prevent batteries from overcharging
- Load Disconnect protects batteries from being over-discharged
- Handles up to 30A Amps of Array Current or up to 450 Watts of solar power
- Protects battery from overcharge and discharge
- Maintains 12V batteries in a fully charged state
- LED status indicator provides quick reference to Battery and load status (SC models)
- LED digital display shows charging current, loads current and battery voltage (SCD model)
- Temperature compensation
- 2 Year warranty
- Product Specifications | Download
- Product Manual | Download

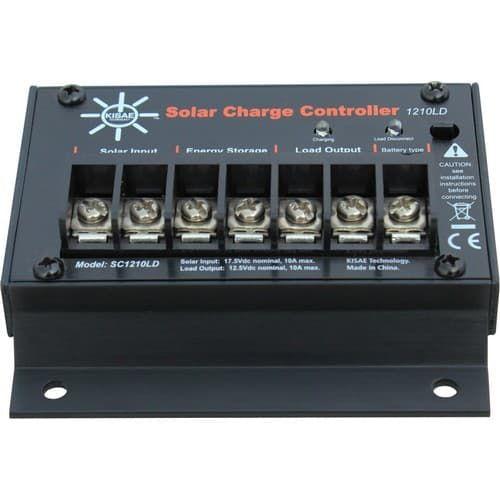

| Solar Charge Controller | SC1220LD |
|---|---|
| DC Input (PV) | |
| Max. PV Voltage | 26V |
| Max. PV Current | 20A |
| Voltage across PV & Battery | < 0.15V |
| DC Output (Battery) | |
| Battery Rating | |
| Battery Type | Sealed/Flooded |
| Max. Charge Current | 20A |
| Charge Voltage Range | 14.2 - 14.6V |
| Float Voltage Range | 13.4 - 13.8V |
| Parasitic Current | <15mA |
| DC Output (Load) | |
| Load Current (Continuous) | 20A |
| Protection | |
| PV Reverse Polarity | Protected |
| Battery Overcharge | Yes |
| Load Over-discharge Voltage | < 11.5V |
| Load Reconnected Voltage | 12.6V |
| Enclosure | |
| Input/Output Connection | Heavy duty terminals |
| Weight | 5.7 lbs |
| Dimension | 11.6 x 8.1 x 3.4" |
