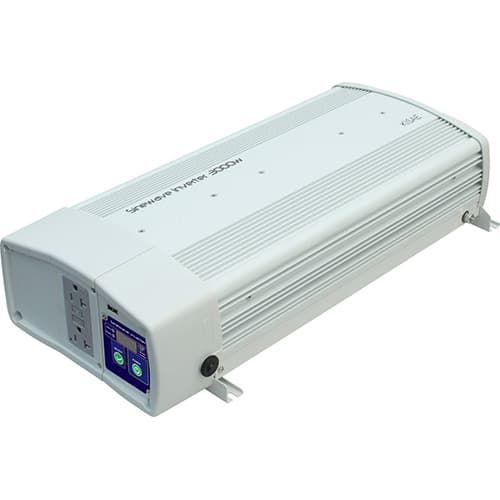

Kisae Technology, SWXFR1230, True Sine Wave Inverter with Transfer Switch, 3000W

Model: SWXFR1230
GTIN: 04897038150649
Manufactured by: Kisae Technology
Condition: New
Estimated Delivery: Apr 1st - Apr 7th
In Stock
Out of Stock

Price:

$749.84 $576.80

Would you like to add these items to your order?

Kisae Technology, RM1201-00, Remote On/Off Switch $19.50 $15.00

Manufacturer Info

Other products

Convert Battery Power to Household AC Power

Premium sine wave inverter with built-in Transfer Switch
Pure Sine Wave output - just like household AC power
Run your household appliances in your truck, boat or RV
Tested and approved to cETLus regulatory standards for North America and CE regulatory standards for Europe
International output sockets available
Ideal for cars, boats, trucks, and RVs

Features and Benefits

Regulated output
Low battery shutdown to prevent total battery discharge
Detachable display for battery status and load measurement
Over temperature shutdown
Mounting brackets and high quality DC connectors make installation simple
All models designed to be hard-wired using terminal strip
USB port for charging USB devices
Approved to UL, CSA and European Regulatory Standards

Dimensions (W x L x H)

SWXFR 1230: 21 x 9 x 4.5 (539 x 230 x 115 mm)

Weight

SWXFR 1230: 15.4lb (7.0 kg)

SWXFR Series (True Sinewave)	SWXFR 1230	SWXFR 1230i
AC Output
Power (Continuous)	3000W	3000W
Power (Peak)	6000W	6000W
Voltage / Frequency	120 VAC / 60 Hz	230 VAC / 50 Hz
Current	25.0A	13.0A
Waveform	True Sinewave (<3% THD)	True Sinewave (<3% THD)
Peak Efficiency	90%	90%
AC Output Socket	NEMA 5-20	Euro, Australia, UK
DC Output
5V USB	2.1 A	2.1 A
DC Input
Voltage (nominal)	12.5Vdc	12.5Vdc
Operation Range	10.5 - 15.5Vdc	10.5 - 15.5Vdc
Current (no load)	< 2.0A	< 2.0A
AC Transfer Switch
Transfer Time	< 30 ms	< 30 ms
Transfer Relay Rating	30A	16A
Display Panel
LED Indicator	Status, Display	Status, Display
LED Digital Display	Input Voltage, Output Power, Warning and Error code	Input Voltage, Output Power, Warning and Error code
Protection
Input Undervoltage Shutdown	10.5Vdc	10.5Vdc
Input Overvoltage Shutdown	15.5Vdc	15.5Vdc
Regulatory Compliance
Markings	cETLus	CE
Conformance	UL & CSA Standards	LVD & EMC
Enclosure
Weight	15.4 lbs	7.0kg
Dimension	21 x 9 x 4.5"	539 x 230 x 115 mm
