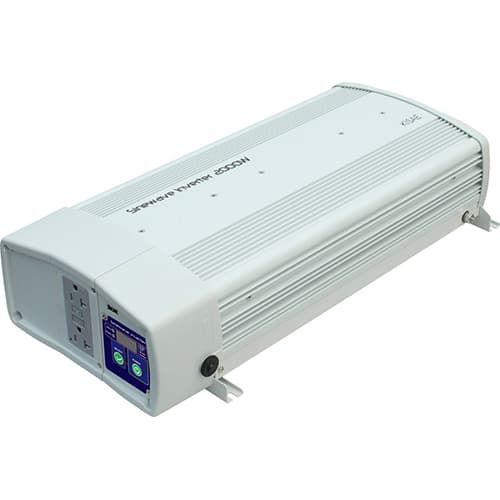

Kisae Technology, SWXFR1220, True Sine Wave Inverter with Transfer Switch, 2000W
- Model: SWXFR1220
- GTIN: 04897038150595
- Manufactured by: Kisae Technology
- Condition: New
-
Estimated Delivery:
Nov 24th - Nov 30th
- In Stock
- Out of Stock
Convert Battery Power to Household AC Power
- Premium sine wave inverter with built-in Transfer Switch
- Pure Sine Wave output - just like household AC power
- Run your household appliances in your truck, boat or RV
- Tested and approved to cETLus regulatory standards for North America and CE regulatory standards for Europe
- International output sockets available
- Ideal for cars, boats, trucks, and RVs
Features and Benefits- Regulated output
- Low battery shutdown to prevent total battery discharge
- Detachable display for battery status and load measurement
- Over temperature shutdown
- Mounting brackets and high quality DC connectors make installation simple
- All models designed to be hard-wired using terminal strip
- USB port for charging USB devices
- Approved to UL, CSA and European Regulatory Standards
- Product Specifications | Download
- Product Manual | Download
Dimensions (W x L x H) - SWXFR 1220: 17 x 9 x 4.5 (435 x 230 x 115 mm)
Weight - SWXFR 1220: 13.0 lb (5.9kg)
| SWXFR Series (True Sinewave) | SWXFR 1220 | SWXFR 1220i |
|---|
| AC Output |
|---|
| Power (Continuous) | 2000W | 2000W |
|---|
| Power (Peak) | 4000W | 4000W |
|---|
| Voltage / Frequency | 120 VAC / 60 Hz | 230 VAC / 50 Hz |
|---|
| Current | 16.6A | 8.7A |
|---|
| Waveform | True Sinewave (<3% THD) | True Sinewave (<3% THD) |
|---|
| Peak Efficiency | 90% | 90% |
|---|
| AC Output Socket | NEMA 5-20 (GFCI) | Euro, Australia, UK |
|---|
| DC Output |
|---|
| 5V USB | 2.1 A | 2.1 A |
|---|
| DC Input |
|---|
| Voltage (nominal) | 12.5Vdc | 12.5Vdc |
|---|
| Operation Range | 10.5 - 15.5Vdc | 10.5 - 15.5Vdc |
|---|
| Current (no load) | < 1.5A | < 1.5A |
|---|
| AC Transfer Switch |
|---|
| Transfer Time | < 30 ms | < 30 ms |
|---|
| Transfer Relay Rating | 30A | 16A |
|---|
| Display Panel |
|---|
| LED Indicator | Status, Display | Status, Display |
|---|
| LED Digital Display | Input Voltage, Output Power, Warning and Error code | Input Voltage, Output Power, Warning and Error code |
|---|
| Protection |
|---|
| Input Undervoltage Shutdown | 10.5Vdc | 10.5Vdc |
|---|
| Input Overvoltage Shutdown | 15.5Vdc | 15.5Vdc |
|---|
| Regulatory Compliance |
|---|
| Markings | cETLus | CE |
|---|
| Conformance | UL & CSA Standards | LVD & EMC |
|---|
| Enclosure |
|---|
| Weight | 13.0 lbs | 5.9kg |
|---|
| Dimension | 17 x 9 x 4.5" | 435 x 230 x 115 mm |
|---|
