Manufacturer Info

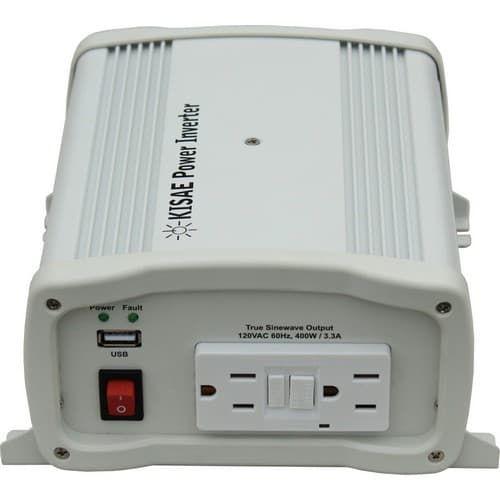

Convert Battery Power to Household AC Power
- Pure Sine Wave output - just like household AC power
- Run your household appliances in your truck, boat or RV
- Premium sine wave inverters (SW series)
- Tested and approved to cETLus regulatory standards for North America and CE regulatory standards for Europe
- International output sockets available
- Ideal for cars, boats, trucks, and RVs
- Regulated output
- Low battery shutdown to prevent total battery discharge
- GFCI outlets for safe operation (all models except 400W)
- Built in LED display for battery status and load measurement
- Silent operation
- Over temperature shutdown
- Simple to install
- Remote on/off switch (all models except 400W)
- Compact size for easy storage
- USB port for charging USB devices (all models)
- Product Specifications | Download
- Product Manual | Download
- SW 1210: 12.6 x 6.9 x 3.4 (320 x 175 x 87 mm)
- SW 1210: 6.0 lb (2.7kg)
| SW Series (True Sinewave) | SW 1210 | SW 1210i |
|---|---|---|
| AC Output | ||
| Power (Continuous) | 1000W | 1000W |
| Power (Peak) | 2000W | 2000W |
| Voltage / Frequency | 120 VAC / 60 Hz | 230 VAC / 50 Hz |
| Current | 8.3A | 4.3A |
| Waveform | True Sinewave (<3% THD) | True Sinewave (<3% THD) |
| Peak Efficiency | 90% | 90% |
| AC Output Socket | NEMA 5-15 (GFCI) | Euro, Australia, UK |
| DC Output | ||
| 5V USB | 2.1 A | 2.1 A |
| DC Input | ||
| Voltage (nominal) | 12.5Vdc | 12.5Vdc |
| Operation Range | 10.5 - 15.5Vdc | 10.5 - 15.5Vdc |
| Current (no load) | < 1.2A | < 1.2A |
| Display Panel | ||
| LED Indicator | Status | Status |
| LED Digital Display | Input Voltage, Output Power, Warning and Error code | Input Voltage, Output Power, Warning and Error code |
| Protection | ||
| Input Undervoltage Shutdown | 10.5Vdc | 10.5Vdc |
| Input Overvoltage Shutdown | 15.5Vdc | 15.5Vdc |
| Regulatory Compliance | ||
| Markings | cETLus | CE |
| Conformance | UL & CSA Standards | LVD & EMC |
| Enclosure | ||
| Weight | 6.0 lbs | 2.7kg |
| Dimension | 12.6 x 6.9 x 3.4" | 320 x 175 x 87 mm |
