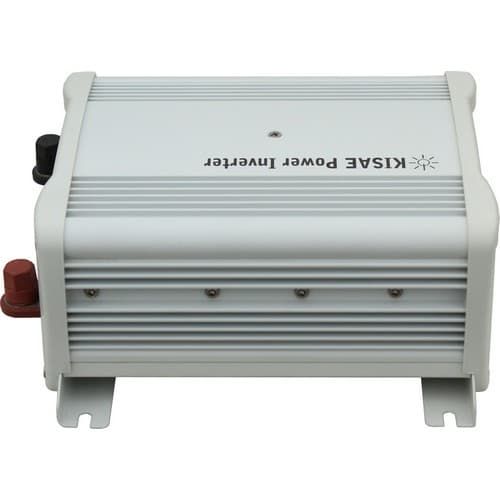

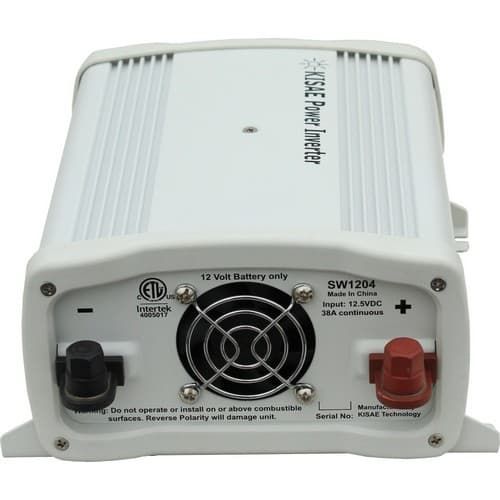

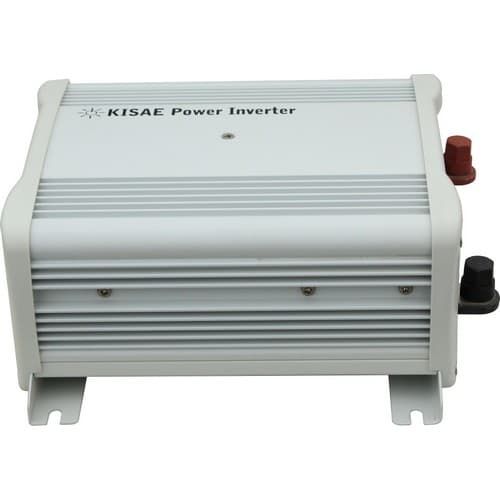

Kisae Technology, SW1204, True Sine Wave Inverter, 400W
- Model: SW1204
- GTIN: 04897038150311
- Manufactured by: Kisae Technology
- Condition: New
-
Estimated Delivery:
Nov 22nd - Nov 28th
- In Stock
- Out of Stock
Convert Battery Power to Household AC Power
- Pure Sine Wave output - just like household AC power
- Run your household appliances in your truck, boat or RV
- Premium sine wave inverters (SW series)
- Tested and approved to cETLus regulatory standards for North America and CE regulatory standards for Europe
- International output sockets available
- Ideal for cars, boats, trucks, and RVs
Features and Benefits - Regulated output
- Low battery shutdown to prevent total battery discharge
- GFCI outlets for safe operation (all models except 400W)
- Built in LED display for battery status and load measurement
- Silent operation
- Over temperature shutdown
- Simple to install
- Remote on/off switch (all models except 400W)
- Compact size for easy storage
- USB port for charging USB devices (all models)
- Product Specifications | Download
- Product Manual | Download
Dimensions (W x L x H) - SW 1204: 6.9 x 7.9 x 2.3 (175 x 201 x 58 mm)
Weight | SW Series (True Sinewave) | SW 1204 | SW 1204i |
|---|
| AC Output |
|---|
| Power (Continuous) | 400W | 400W |
|---|
| Power (Peak) | 800W | 800W |
|---|
| Voltage / Frequency | 120 VAC / 60 Hz | 230 VAC / 50 Hz |
|---|
| Current | 3.3A | 1.74A |
|---|
| Waveform | True Sinewave (<3% THD) | True Sinewave (<3% THD) |
|---|
| Peak Efficiency | 90% | 90% |
|---|
| AC Output Socket | NEMA 5-15 | Euro, Australia, UK |
|---|
| DC Output |
|---|
| 5V USB | 750mA | 750mA |
|---|
| DC Input |
|---|
| Voltage (nominal) | 12.5Vdc | 12.5Vdc |
|---|
| Operation Range | 10.5 - 15.5Vdc | 10.5 - 15.5Vdc |
|---|
| Current (no load) | < 0.8A | < 0.8A |
|---|
| Display Panel |
|---|
| LED Indicator | Power, Fault | Power, Fault |
|---|
| LED Digital Display | N/A | N/A |
|---|
| Protection |
|---|
| Input Undervoltage Shutdown | 10.5Vdc | 10.5Vdc |
|---|
| Input Overvoltage Shutdown | 15.5Vdc | 15.5Vdc |
|---|
| Regulatory Compliance |
|---|
| Markings | cETLus | CE |
|---|
| Conformance | UL & CSA Standards | LVD & EMC |
|---|
| Enclosure |
|---|
| Weight | 3.8 lbs | 1.7kg |
|---|
| Dimension | 6.9 x 7.9 x 2.3" | 175 x 200 x 58 mm |
|---|
