Manufacturer Info
Convert Battery Power to Household AC Power
- Run your household appliances in your truck, boat or RV
- Powerful and economical modified sinewave inverters
- Tested and approved to cETLus regulatory standards for North America
- Tested and approved to CE regulatory standards for Europe
- International output sockets available
- Ideal for cars, boats, trucks, and RVs
- Regulated output
- Low battery shutdown to prevent total battery discharge
- GFCI outlets for safe operation
- Built in LED display for battery status and load measurement
- Over temperature shutdown
- Simple to install
- Remote on/off switch
- Compact size for easy storage
- USB port for charging USB device
- Product Specifications | Download
- Product Manual | Download

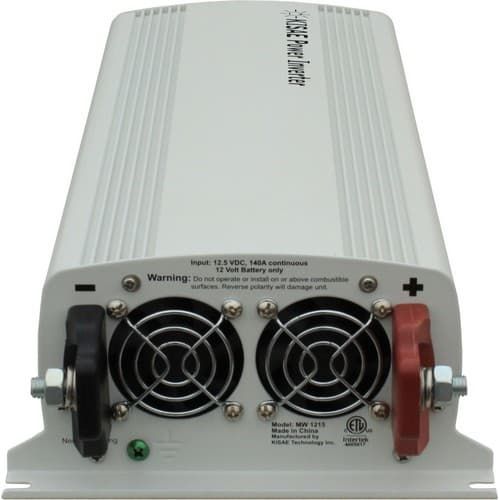

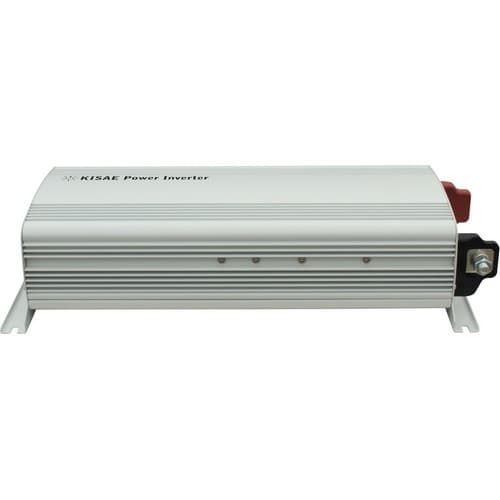

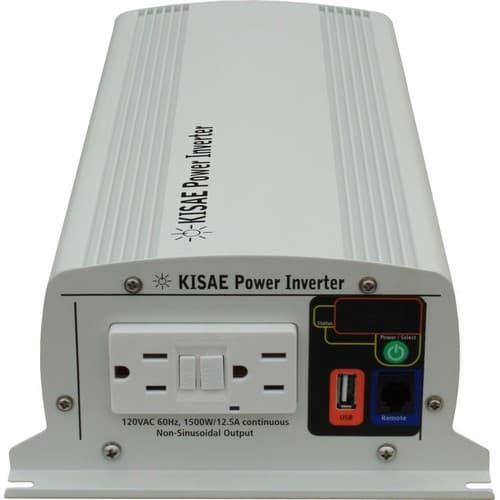

- MW 1215: 15.0 x 6.9 x 3.4 (381 x 176 x 86 mm)
- MW 1215: 6.9lb (31.4kg)
| MW Series (Modified Sinewave) | MW 1215 |
|---|---|
| AC Output | |
| Power (Continuous) | 2000W |
| Power (Peak) | 4000W |
| Voltage / Frequency | 120 VAC / 60 Hz |
| Current | 16.6A |
| Waveform | Modified Sinewave |
| Peak Efficiency | 90% |
| AC Output Socket | NEMA 5-15 (GFCI receptacle) |
| DC Output | |
| 5V USB | 2.1A |
| DC Input | |
| Voltage (nominal) | 12.5Vdc |
| Operation Range | 10.5 – 15.5Vdc |
| Current (no load) | < 0.6A |
| Display Panel | |
| Indicator (LED) | Status |
| Digital Display | Input Voltage, Output Power, Warning and Error code |
| Protection | |
| Input Undervoltage Shutdown | 10.5Vdc |
| Input Overvoltage Shutdown | 15.5Vdc |
| Regulatory Compliance | |
| Markings | cETLus |
| Conformance | UL & CSA Standards |
| Enclosure | |
| Weight | 6.9 lbs |
| Dimension | 15.0 x 6.9 x 3.4" |
