The images shown are for illustration purposes only and may not be an exact representation of the product

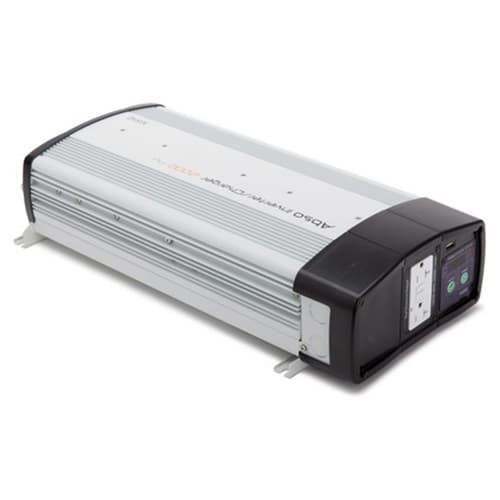

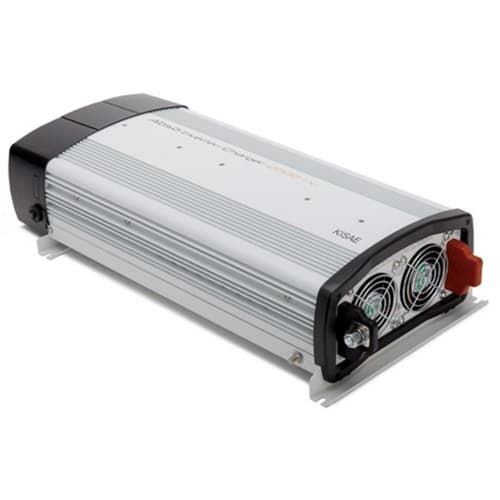

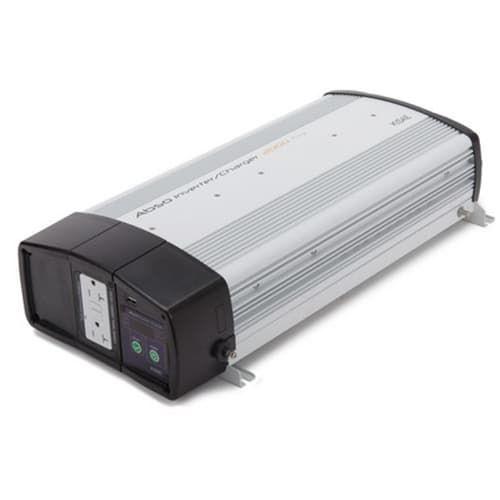

Kisae Technology, IC121040, ABSO Sine Wave Inverter/Charger, 1000W
- Model: IC121040
- GTIN: 04897038150328
- Manufactured by: Kisae Technology
- Condition: New
-
Estimated Delivery:
Nov 24th - Nov 30th
- In Stock
- Out of Stock
Convert Battery Power to Household AC Power and Recharge Your Batteries
- Run your household appliances in your truck, boat or RV
- Sinewave output to run motor loads and sensitive electronics
- Multi-stage charger will charge your deep cycle batteries quickly and efficiently
- Integrated transfer switch allows you to switch seamlessly from shore power to battery power
- Ideal inverter for running microwave ovens, kitchen appliances, and consumer electronics
Features and Benefits- Low frequency design with high surge capability to start demanding loads
- True sinewave output will run heavy-duty motor loads and entertainment systems flawlessly
- Low battery shutdown to prevent total battery discharge
- System remote panel (included) provides vital system information
- Over temperature shutdown
- Mounting brackets and high quality DC connectors make installation simple
- Approved to UL, CSA, and European regulatory standards
- Product Specifications | Download
- Product Manual | Download
Dimensions (W x L x H) - IC 121040: 9 x 18.8 x 4.5 (230 x 478 x 114 mm)
Weight - IC 121040: 12.5 lb (5.7 kg)
| Inverter / Charger (High Frequency) | IC 121040 | IC 121040i |
|---|
| AC Output |
|---|
| AC Output Power (Continuous) | 1000W | 1000W |
|---|
| AC Output Power (Peak) | 2000W | 2000W |
|---|
| AC Output Voltage / Frequency | 120 VAC / 60 Hz | 230 VAC / 50 Hz |
|---|
| AC Output Current | 8.3A | 4.3A |
|---|
| AC Output Waveform | True Sinewave (< 3% THD) | True Sinewave (< 3% THD) |
|---|
| Peak Efficiency | 90% | 90% |
|---|
| DC Input |
|---|
| Voltage (nominal) | 12.5Vdc | 12.5Vdc |
|---|
| Operation Range | 10.5 - 15.5Vdc | 10.5 - 15.5Vdc |
|---|
| Inverter Standby Current | < 1.5A | < 1.5A |
|---|
| Protection |
|---|
| Input Undervoltage Shutdown | 10.5Vdc | 10.5Vdc |
|---|
| Input Overvoltage Shutdown | 15.5Vdc | 15.5Vdc |
|---|
| Display Panel |
|---|
| Indicator (LED) | Status, Display | Status, Display |
|---|
| Digital Display | Input Voltage, Output Power, Warning and Error Code | Input Voltage, Output Power, Warning and Error Code |
|---|
| Battery Charger |
|---|
| Charger Voltage Range | 14.2 - 15.5V | 14.2 - 15.5V |
|---|
| Float Voltage Range | 13.4 - 13.8V | 13.4 - 13.8V |
|---|
| Charger current | 40A | 40A |
|---|
| Charger Battery Type | Gel, Flooded, AGM | Gel, Flooded, AGM |
|---|
| AC Input Voltage/Frequency | 120 VAC / 60 Hz | 230 VAC / 50 Hz |
|---|
| AC Transfer Switch |
|---|
| Transfer Time | < 30ms | < 30ms |
|---|
| Transfer Relay Rating | 30A | 16A |
|---|
| Regulatory Compliance |
|---|
| Markings | cETLus | CE |
|---|
| Conformance | UL & CSA Standards | LVD, EMC |
|---|
| Enclosure |
|---|
| Weight | 12.5 lbs | 5.7kg |
|---|
| Dimension | 9.0 x 18.8 x 4.5" | 230 x 478 x 114 mm |
|---|
