BIC122080
The power gap is bridged with these premium performance, high frequency, bi-directional inverter-chargers.

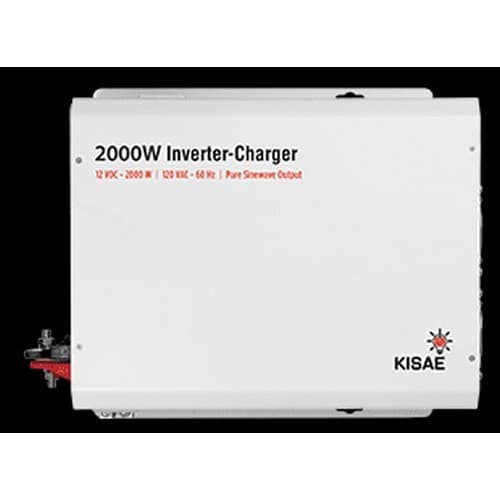

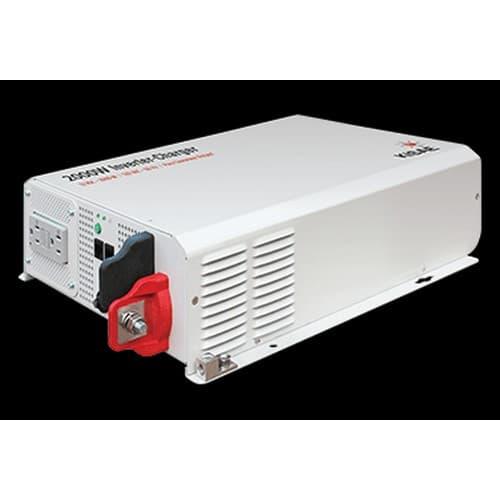

2000W / 80A Inverter-Charger

High Frequency Series

BIC inverter-chargers are premium performance, high-frequency power products that wed a high wattage true sinewave power inverter with a high amp smart battery charger. Flexibility is key with input voltage versions available in either 12 volt DC for 12V batteries or 24 volt DC for 24V batteries; and output versions of either 120 volt AC or 230 volt AC.

Features Include

• Combines a 2000W DC-AC inverter with a 80A multi-stage charger plus transfer switch.
• True sinewave output identical to or better than power provided by the local power grid.
• Multi-stage charging ensures batteries are charged to their maker’s recommendations.
• Variable settings offered for Gel, Flooded, AGM, and Lithium battery compatibility.
• High start-up surge rated at twice the continuous power rating.
• Product Manual | Download
• System Diagram | Download

Features And Benefits

• High wattage power inverter
• True sine wave output
• 120Vac output versions available
• 230Vac output versions available
• High amperage battery charger
• Micro-processor controlled
• Regulatory Approved to cETus standards for North America, and CE standards for EU, UK, AU and NZ
• Multi-stage charging algorithm
• Charges a variety of battery types
• Lightweight compact design
• Built-in CAN BUS communication
• Accepts AC or DC input sources
• Built-in load sense to minimize battery drain
• Comes with remote panel included for unit setting and monitoring

Dimensions (L x W x H)
IC122080: 15.4" x 11.9" x 4.2" (391 x 302 x 106mm)

Weight
IC122080: 17.6 lbs. / 8.0 Kg

AC Output Power (Continuous)	2000W
AC Output Power (Peak - 1 second)	4000W
AC Output Voltage/Frequency	120VAC / 60 Hz
AC Output Current	16.6A
AC Output Current (Peak)	40A max (with max power limitation)
AC Output Waveform	True Sinewave (<5% THD)
Peak Eciency	90%
Input Voltage (nominal)	12.5Vdc
Input Voltage Operation Range	10.5 - 16.5Vdc
Input Standby Current	<3.0A
Input Standby Current (Power Save)	< 0.6A
Charger Voltage Range	13.8 - 14.8V (Selectable)
Float Voltage Range	13.0 - 14.0V (Selectable)
Charger Current	10 - 80A
Charger Battery Type	Gel, Flooded, AGM, Lithium, Programmable, Power Supply
Charging Stages	Check, Bulk, Absorption, Float, Recharge
Recharge Voltage Range	13.0 - 14.0 V (Selectable)
Recharge Timer	7-days (automatic)
Power Sharing	Reduce Charger Current when heavy AC Load is connected
AC Input Voltage/Frequency	120 VAC (Accept MSW AC Input)
AC Input Voltage Acceptance Range:	108 - 132 VAC
Transfer Time	< 30ms
Transfer Relay Rating	30A
AC Input Port	Hardwire 30A Heavy Duty Connector
AC Output Port	Hardwire 30A Heavy Duty Connector
AC Input Socket	NEMA 5-20 GFCI (Optional)
Battery Input Undervoltage Shutdown:	10.5 - 12.0Vdc (with dynamic control)
Battery Input Undervoltage Warning:	11.0 - 12.5Vdc
Battery Input Undervoltage Recovery:	N/A
Battery Input Overvoltage Shutdown:	16.5Vdc
Inverter Overload Warning/Shutdown:	1800W / 2200W
Unit Over-temp Warning/Shutdown:	Yes
Power On/O Switch	Yes (Push Button)
Indicator	3 LEDs (Power, AC Output, Unit Status)
Remote Display Port	For Remote Display Panel use
Battery Temperature Sensor Port:	For use with Battery Temperature Sensor (BTT)
Ignition Start Port	For use with Vehicle ‘ACC’ signal
Indicator (LED)	Power, AC Output, Unit and Battery Status Display Type
Numerical Display Function	Battery Voltage, AC Power, DC Current
Graphics Display Function	AC Bypass, Battery Power, AC Input, Battery Status Warning/Fault Code
Communication	CAN BUS, Bluetooth (optional), LIN (optional)
USB Port	Unit software upgrade
Markings	cETLus
Conformance	UL & CSA Standards
EMI/EMC	FCC Part 15 Class B
Dimensions (L x W x H)	15.4“ x 11.9” x 4.2” (391mm x 302mm x 106mm)
Net Weight	17.6 lbs. / 8 kg
