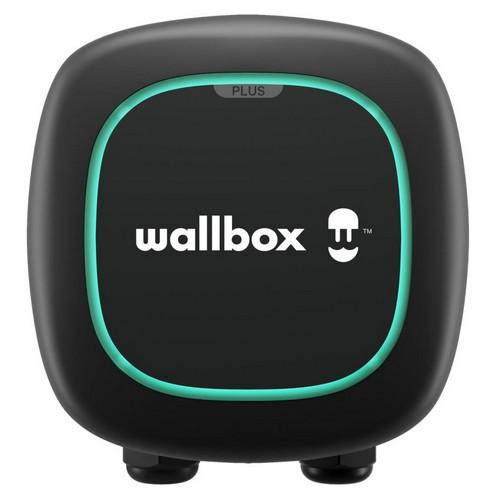

Pulsar Plus 40A
240V (Level 2) | 9.6kW | 25'

• Adjustable power up to 40Amp (9.6kW)
• Wi-Fi and Bluetooth connectivity
• Works with all EVs
• Power Sharing-enabled
• Voice control-enabled
• Open Charge Point Protocol (OCPP) capable
• Energy Star Certified
• Product Specifications | Download

Pulsar Plus offers the best of both small size and powerful performance for faster electric vehicle charging at home. Designed for easy installation, Pulsar Plus can charge any electric car* on the market today. Home charging is simple and efficient with the integrated myWallbox app, which lets you control your charger from your smart devices via WiFi or Bluetooth. Onboard intelligence means your smart functions (including scheduled charging and locking/unlocking) are managed in the charger, not the cloud, letting you access and control your charger even when you can't connect to the Internet. Pulsar Plus also works with Alexa and Google Home voice commands, making charging a seamless addition to your smart home system. NEMA Type 4 rated for watertightness and dust resistance, Pulsar Plus is suitable for indoor and outdoor installation.

Connector type	Type 1 (J1772)
Maximum current	40Amps | 9.6kW
Color	Matte Black
DC Leakage protection Included	No
Input voltage	NEMA 14-50 or Hardwired

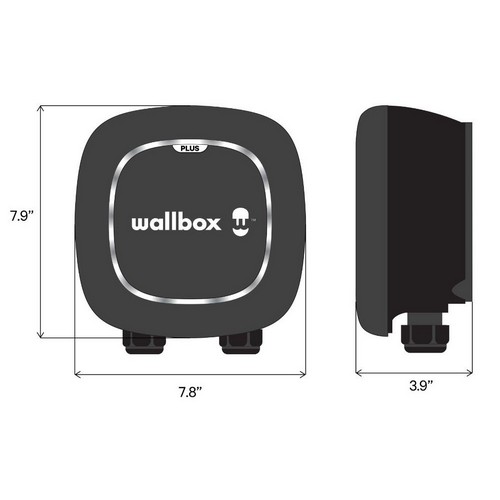

Dimensions	7.8"x7.9"x3.9"
Charger status information	Wallbox App, myWallbox Portal
Cable length	25'
Other details	Energy Star Certified
Important note	*Tesla vehicles require the universal charging adapter that comes with every Tesla vehicle.
Configurable Current	6A to 40A
Electrical Safety Certification	UL 2594, UL 2231
EMC Compliance	FCC Part 15 Class B
Environmental/Enclosure Rating	NEMA Type 4 per UL 50E
Rated Voltage AC +/-10%	240/208V (Level 2)
Voice Control	Amazon Alexa and Google Assistant
