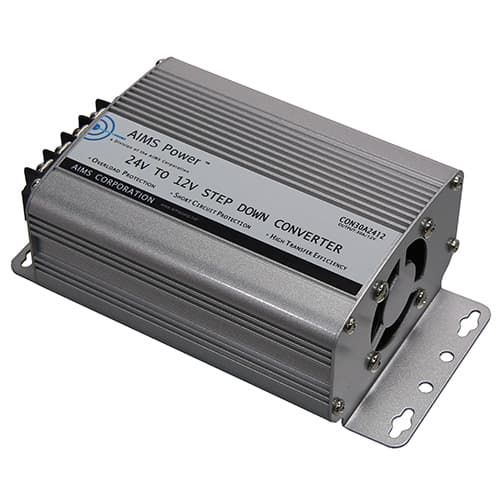

This compact step-down DC-DC converter has an input voltage of 24 VDC nominal (range 20 VDC to 37 VDC) to a highly regulated output voltage of 12 VDC nominal at 60 Amps. This a non-isolated 60 amp DC-DC converter and is made for use in negative ground systems. These units have CE EN61000-6-3:2007+A1:2011 and CE EN61000-6-1:2007

Features

• 60 Amp 24 volt to 12 volt dc to dc converter
• Green LED on front panel to confirm power on

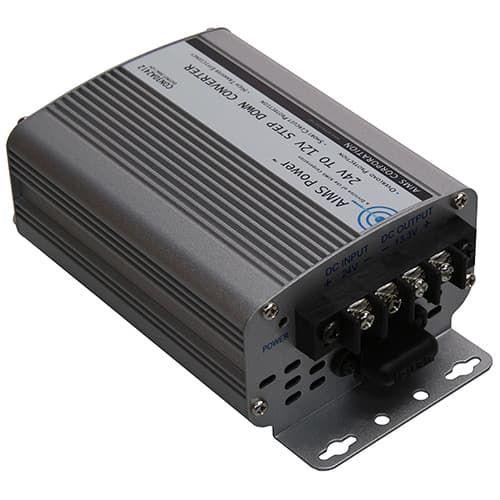

• Terminal block for DC input/output
• Over Temperature protection
• Over Load protection
• DC Input Low Battery Shutdown
• DC Input High Battery Shutdown
• DC Output Short Protection
• DC Output Over Current Protection
• DC Output Over Voltage Protection
• Aluminum case for optimal cooling
• Instruction manual
• Free 1 year tech support
• 1 Year Warranty Parts and Labor
• CE EN61000-6-3:2007+A1:2011
• CE EN61000-6-1:2007
• Product Manual | Download

Specifications

• DC Input Voltage: 20-37 Vdc
• DC Output Voltage: 12.5-13.5 Vdc
• Output Current: 60 amps
• Output Current Max: 72 amps
• Non-Isolated
• Conversion Effiency: >90%
• DC Input Low Battery Shutdown: 18 +/- 1 V
• DC Input High Battery Shutdown: >38Vdc
• DC Input Over Current Protection: 30A Fuse
• DC Input Polarity Protection: Fuse Protected
• Over Temperature Protection: 150 +/- 5 degrees F
• DC Output Short Protection: Yes
• DC Output Over Current Protection: 72 amps
• DC Output Over Voltage Protection: TVS Diode

Dimensions

• Unit Weight: 2.0 lbs.
• Unit Size L x W x H: 5.91 x 3.39 x 2.2 inches
• Shipping Weight: 2 lbs.
