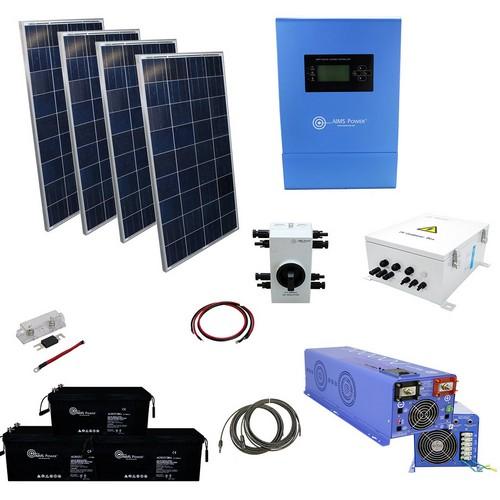

Kit Includes

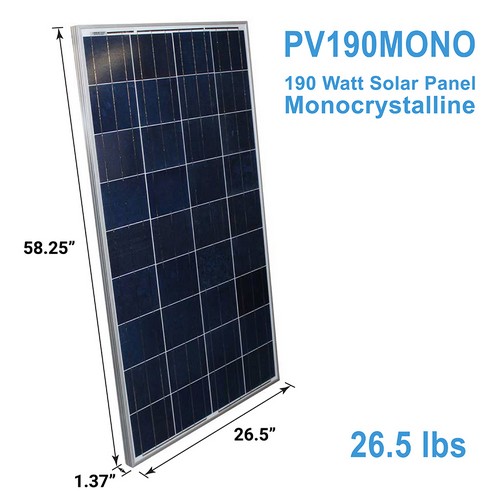

190W Solar Panel Mono (each 4)
Solar Panels

PV Male to Female Extension (each 4)
20 Foot Cable 10 AWG
Extension cables from Panel Array to Combiner Box

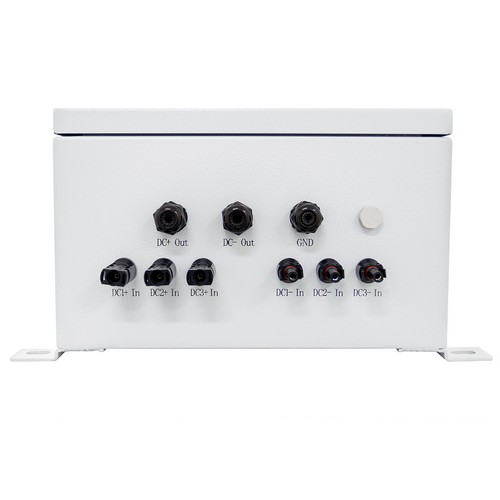

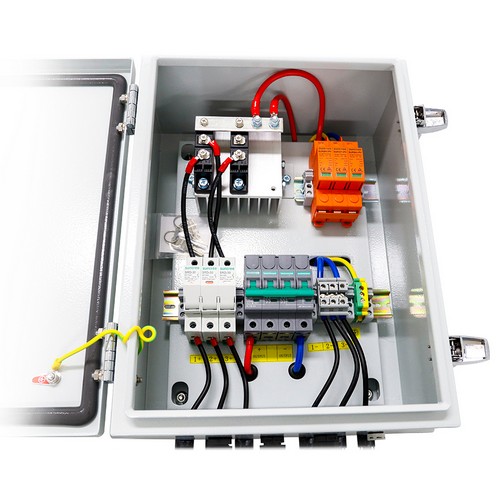

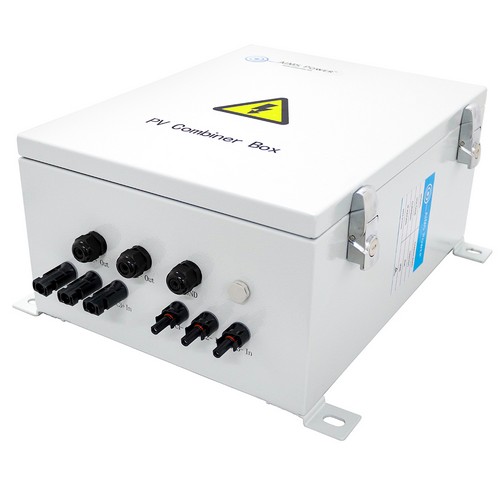

Combiner Box 3 String (each 1)
Solar Array feeds into Combiner Box

PV Male and Female Cable (each 2)
Home Run Cables from Combiner Box
To Disconnect Switch

Quick Disconnect Switch (each 1)
Used to quickly cut power

PV Female Cable (each 1)
20 Foot Cable 10 AWG
Used to connect Disconnect Switch to
Solar Charge Controller

PV Male Cable (each 1)
20 Foot Cable 10 AWG
Used to connect Disconnect Switch to
Solar Charge Controller

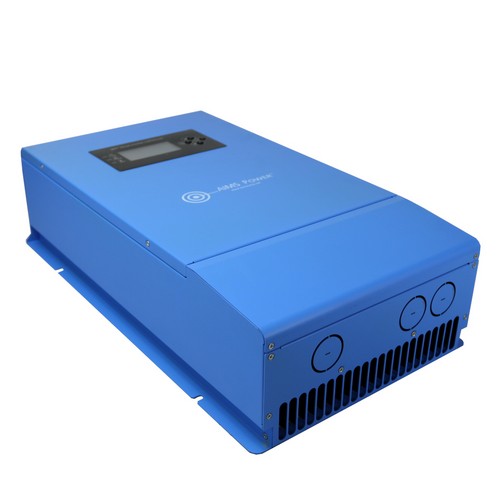

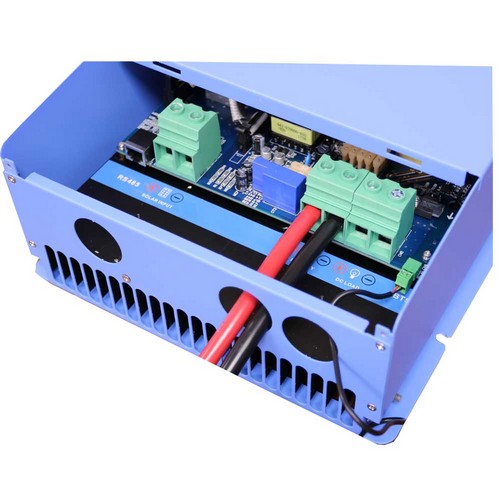

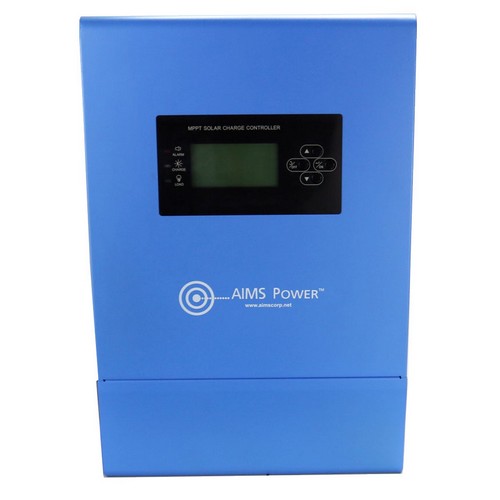

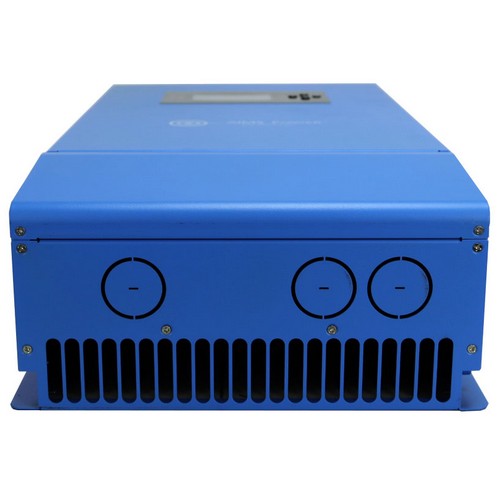

Solar Charge Controller MPPT (each 1)
60 Amp 12 or 24Vdc
Charges battery with solar power

Charge Controller Cable 6 Foot (set 1)
8 AWG Lug to cut end
Connects Solar Charge Controller to Battery Bank

ANL 80 Amp Fuse + Holder Kit + 8AWG Jumper (kit 1)
Fuse goes between Solar Charge Controller and Battery Bank as a safety feature (positive side)

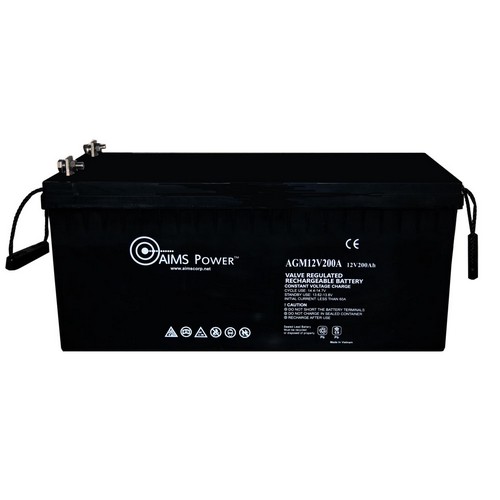

AGM Battery 12V 200A (each 3)
Stores DC Power - 600 amps

Battery Bank Cable 1 foot, (each 3)
4/0 AWG Red Only
2 = Series connection for battery bank
1 = fuse kit jumper cable

ANL 500 Amp Fuse + Holder Kit (kit 1)
Fuse goes between inverter and
Battery as a safety feature

Battery Bank Cable 2 feet (set 2)
4/0 AWG Red + Black Set
Battery Parallel Connection
Power Inverter Cable 6 feet set 1
4 AWG Red + Black Set
Battery bank to Inverter

Low Frequency Battery Sensor (each 1)
Tape to negative side of battery
Near post. Plug into inverter

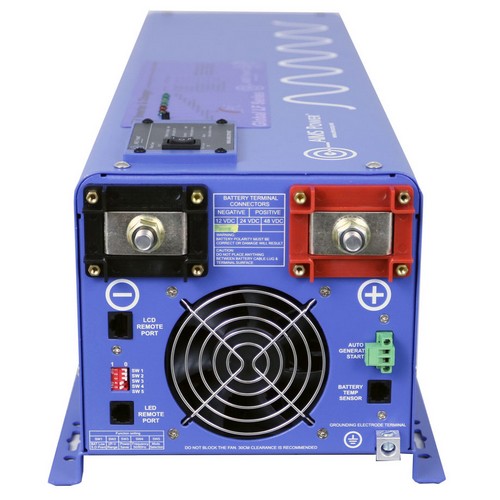

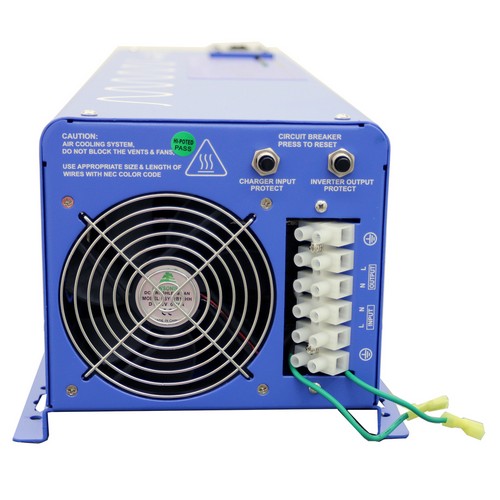

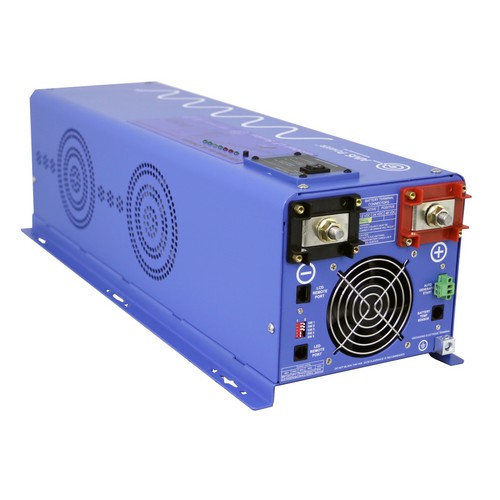

Pure Sine Power Inverter Charger w/transfer switch each 1)
4000W, 12Vdc, 120Vac, 33 amps
