A convenient kit, bundled with all the products you need for installation. Power inverters have become a staple in businesses and homes around the world due to intermittent brown and black-outs. AIMS pure sine wave power inverters provide reliable transformation of DC power from a battery (such as the one in a car or RV) into AC power that can then be used to run lights, computers, printers, televisions, medical equipment* and a broad range of appliances. And when it comes to selecting an inverter, it's helpful to know that AIMS pure sine wave inverters represent the most technologically advanced, lightweight, compact and diverse inverters on the market to help ensure the widest use of applications. For over a decade, the AIMS' Power has consistently delivered the broadest range of sizes to accommodate virtually every power requirement. Advantages of a pure sine inverter: -Equipment runs more efficiently -Motors run cooler -Cleaner power -Ideal for power tool chargers, laser printers, electric shavers, microwaves, variable speed motors, TV's, medical equipment

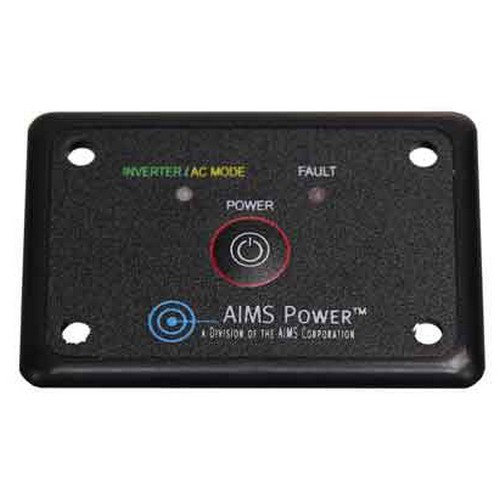

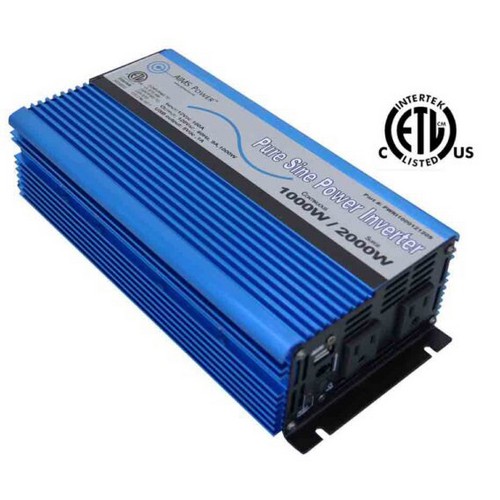

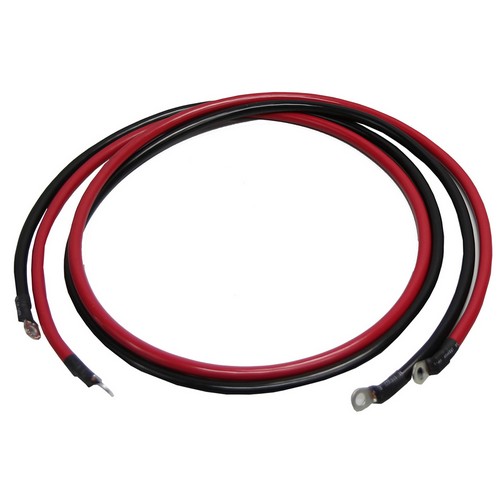

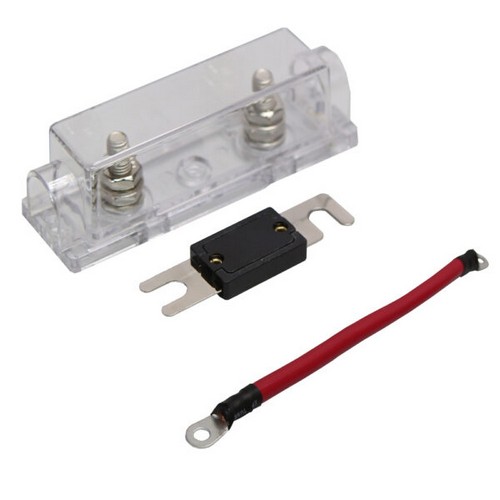

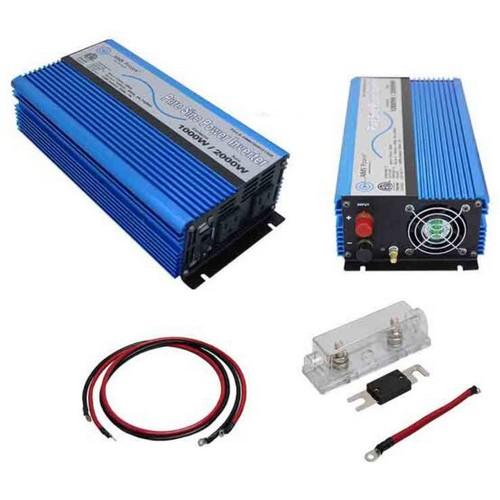

Kit includes 1000 watt pure sine inverter, on/off remote, fuse kit with jumper 100 amp and 11 ft 8 AWG cables.
Kit includes 1000 watt pure sine inverter, on/off remote, fuse kit with jumper 100 amp and 11 ft 8 AWG cables.
- 1000W continuous power
- Pure sine wave
- USB Port
- Dual AC receptacles
- On/off switch
- Over temperature indicator
- Overload protection
- Low battery voltage warning/shutdown
- High input voltage protection with automatic shutdown
- Over load indicator
- Short circuit protection
- Thermally controlled cooling fan
- AC output short circuit protection
- Instruction manual
- Free 2 year tech support
- 2 Year Warranty
- Continuous output power: 1000 Watts
- Surge power capability (peak power): 2000 Watts
- ETL Listed to UL 458, CSA 22.2 No 107.1
- DC input / operating voltage: 10 to 15 Volts
- Output voltage: 120 Volts AC +/- 10%
- Output wave form: pure sine wave
- Output frequency: 60 Hz
- Battery low voltage alarm: 10.6 +/- 0.5 Volts
- Battery low voltage shutdown: 10.0 +/- 0.5 Volts
- Low battery voltage warning/shutdown
- No load power consumption: < .4 dc amps
- DC amps - 83 AC amps - 8
- Full load efficiency: 90%
- 1/3 load efficiency: 95%
- No load minimum operating temperature: 32 degrees F
- Full load maximum operating temperature: 104 degrees F
- AC Output Socket Type: dual Type 2 -3 prong
- USB Output: 5Vdc, max 1A
- High input voltage protection: 15V
- Low input voltage shutdown: 10V
- Internal blade fuse protection
- Unit Weight: 5.3 lbs.
- Unit Size L x W x H: 11.53 x 5.51 x 2.91 inches
- Shipping Weight: 7 lbs.
- Shipping L x W x H: 18 x 12 x 6 inches
