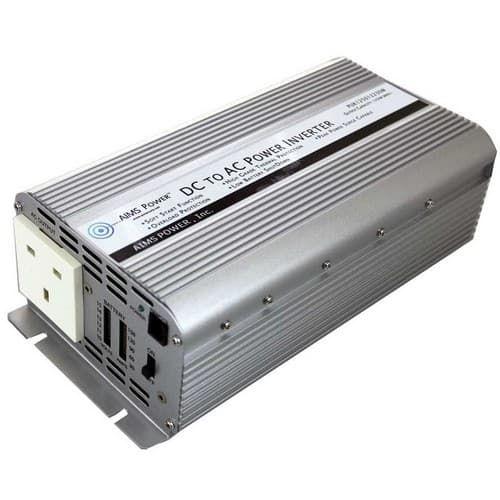

This 1250 watt 12 volt power inverter by AIMS Power converts DC (direct current) power stored by batteries into AC (alternating current) electricity that can be used to run practically any small household appliances or tools.

This unit produces a modified sine wave, which is capable of running most tools, pumps, motors and appliances. Use this product for off-grid back-up power at home, cabin, boat, solar systems or anywhere that doesn't have city power. This is a European UK model. Will not work with 120 volt US power.

What really makes this 1250 watt AIMS Power inverter special is its capability to run off of most vehicles' and/or RVs'/boats' standard power systems at 12 volts. That makes the inverter very attractive to mobile business owners since users don't have to modify a vehicle's standard power system in order to run the inverter off of a car or truck. This definitely saves some money if upgrading a fleet of vehicles with some aftermarket equipment that requires this much power.

Features

• 1250W max continuous power
• Modified sine wave

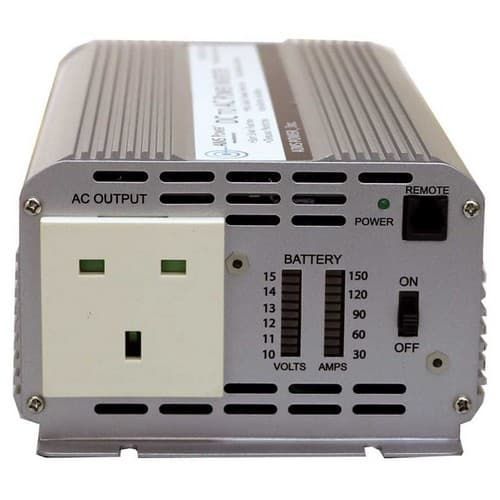

• Volt meter on front panel to monitor your battery voltage
• Watt meter on front panel to monitor your
• Isolated ground neutral
• LED (green/red) indicator that monitors ready or fault
• UK Plug type G 3 prong
• On/off switch
• Over Temperature protection
• Over Load protection
• Dual cooling fan operation thermally controlled
• Internally fuse protected
• AC output short circuit protection
• Auto reset on most fault conditions
• Aluminum case for optimal cooling
• Pre-wired for remote on/off switch - RJ11 port
• Pre-slotted mounting plate
• Instruction manual
• Free 1 year tech support
• 1 Year Warranty Parts and Labor

Specifications

• Continuous output power: 1250 Watt. Use 150 inline fuse.
• Surge power capability (peak power): 3100 Watts
• dc input / operating voltage: 20 to 30 Volts
• Output voltage: 230 Volts AC
• Output wave form: modified sine wave
• Output frequency: 50 Hz
• Battery low voltage alarm: 20 +/- 0.5 Volts
• Battery low voltage shutdown: 20 +/- 0.5 Volts
• No load current: <.5 Amps
• Full load efficiency: 90%
• 1/3 load efficiency: 95%
• No load minimum operating temperature: -15 degrees Celsius
• Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
• UK Plug type G 3 prong
• High input voltage protection: 30V to 17V
• Low input voltage shutdown: 20V
• Internal fuse protection
• Product size (L x W x H): 11.25”X 8.25”X 3”
• Weight: 5 lbs
