Manufacturer Info

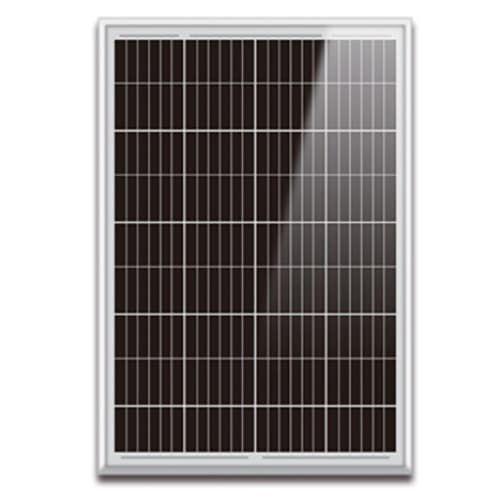

The 120 Watt Monocrystalline Solar Panel from AIMS Power is a versatile performer constructed with tempered glass and a stronger surface to protect from harsh weather conditions. The solar cells are high transmission and the textured glass allows for a more efficient panel. The panel also includes a bypass diode that minimizes the power drop caused by shade. Easy to install using the pre-drilled holes on the aluminum outer frame. Perfect for home installs, vehicle and RV installations and industrial applications.
Features
Features
- Monocrystalline Efficient solar harvesting
- Strong surface for harsh environment
- Panels capable of 0 to +3 Watts over rated capacity
- Pre-drilled aluminum frame
- Tempered glass
- 25 Year limited warranty
- AIMS Power 120 Watt Solar Panel - PV120MONO | Download
- Maximum Power (Watts): 120 watts
- (Vmp): 18.5 volts operating voltage
- (Imp): 6.49 amps operating current
- (Voc): 22.2 volts open circuit voltage
- (Isc): 7.14 amps
- Solar Cell: 158.75mm x 105.83mm
- Number of Cells (pcs): 9*4 = 36
- Front Glass Thickness (mm): 3.2 mm T
- emperature Coefficients of Isc (%) °C: -0.048
- Temperature Coefficients of Voc (%) °C: -0.29
- Temperature Coefficients of Pm (%) °C: -0.37
- Temperature Range: -40°C to +80°C
- Tolerance Wattage: 0-3 watts
- Surface Maximum Load Capacity: 6000Pa snow and 3600Pa wind
- Allowable Hail Load: 45mm at 30.7m/s
- Bypass Diode Rating (A): 10
- Cell Efficiency (%): 19.84%
- Module Efficiency (%): 17.30%
- Warranty: 91.2% of 12 years, 80.6% of 25 years
- Weight Per Panel (lbs): 17 lbs
- Dimensions (inches): 40.15 x 26.75 x 1.37
