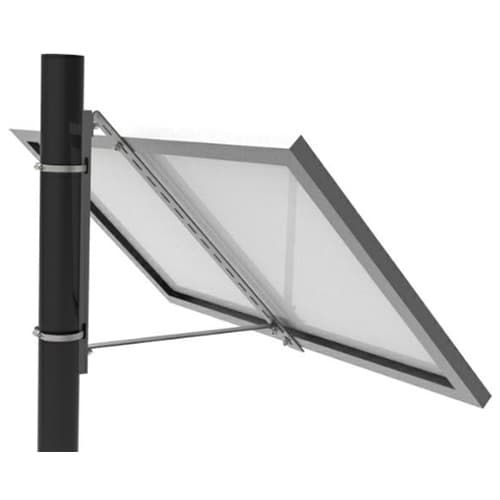

AIMS Power, PV1X130POLE, Adjustable Solar Side Pole Mount Bracket - Fits 1 Panel

  • Model: PV1X130POLE
  • GTIN: 00840271005294
  • Manufactured by: AIMS Power
  • Condition: New
  • Estimated Delivery: Nov 22nd - Nov 28th
  • In Stock
Price:

$75.40 $58.00

Manufacturer Info

This single solar panel pole bracket installs quickly and supports 1 panel. Compatible with panels sizes up to 170 watts. The angle adjusts effortlessly allowing optimal sunlight according to the season. Built with heavy duty aluminum brackets, stainless steel hardware and backed by a 10 year warranty. You can rely on this mount to withstand the environment, protecting your solar investment. Perfect for applications using existing poles on location.

Features
  • Heavy duty aluminum material
  • Stainless steel hardware
  • Adjustable tilt angle 15 different angles
  • Predrilled holes for easy installation, little measuring needed
  • Installs quickly, minimal tools needed
  • All hardware included (pole not included)
  • Fits panels with widths ranging 21.25" - 26.5" width or up to 170 watts. Smaller panels can be used but user will need to modify
  • Panels simply attached to brackets using heavy duty bolts via the predrilled holes on panel and mounting system. Any universal hose clamp may be used if the pole is >3.25" OD
  • Product Manual | Download
Pole not included. Ensure pole can withstand weather and weight. Install facing South and limit obstructions.

Specifications
  • Tilt angle adjustable up to 15 different angles
  • Anodized aluminum
  • Fits 1 panel. Panel sizes up 170 Watts or max width of 26.5" per panel
  • 10 year warranty
  • Works with any existing pole - included hose clamps are for max pole OD diameter of 3.25"
  • Stainless steel hardware
