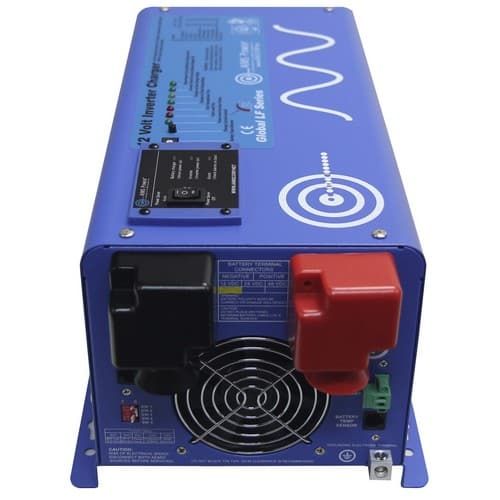

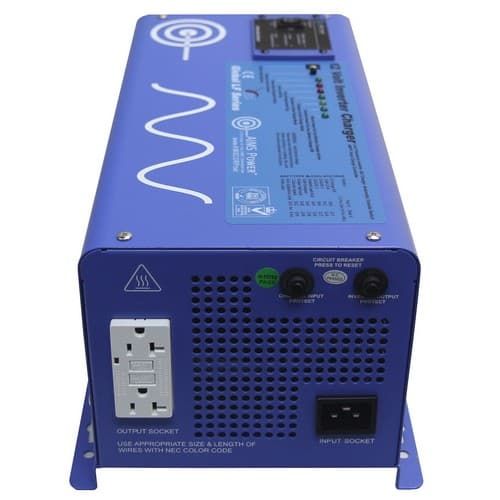

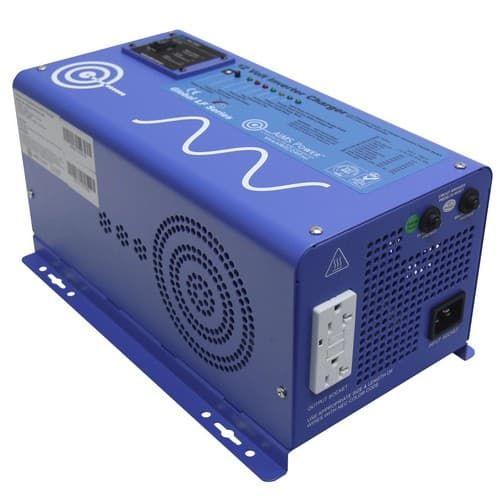

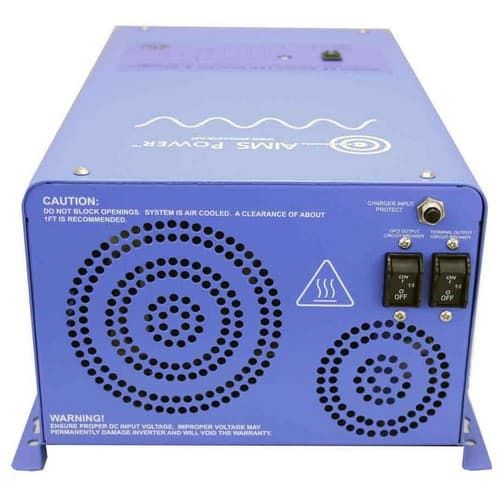

This is the AIMS 1500 Watt Low Frequency Pure Sine Wave Power Inverter Charger with battery charger and Transfer Switch. It boasts a 4500 Watt Surge for 20 seconds.

Features

• 1500 watt low frequency inverter
• 4500 watt surge for 20 seconds -3x surge capability
• Battery Priority Selector
• Terminal Block
• GFCI
• Marine Coated and Protected
• Multi Stage Smart charger 50 Amp
• remote panel available
• auto gen start
• auto frequency
• 10msec typical transfer time
• optional 25W power save mode
• 7 battery type settings for charger
• Product Manual | Download

Specifications
Inverter Output Specifications

• Continuous Output Power: 1500 Watts
• Surge Rating:4500 Watts (20 Seconds)
• Output Waveform: Pure Sine/Same as input (Bypass Mode)
• Output Voltage 100-110-120Vac
• Nominal Efficiency: >88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical Transfer Time: 10ms (Max)
• THD:< 10% DC

Input Specifications

• Nominal Input Voltage: 12.0Vdc
• Minimum Start Voltage: 10.0Vdc
• Low Battery Alarm: 10.5Vdc-11.0Vdc
• Low battery Trip: 10.0Vdc-10.5Vdc
• High Voltage Alarm: 16.0Vdc
• Low battery Voltage Restart: 15.5Vdc
• Idle Consumption: 4 amps DC
• Power Saver Mode Idle Consumption: <1.7 amps DC

Charger Specifications

• Output voltage: Depends on battery Type
• Charger Rate: 50A

Dimensions

• Unit Weight: 33 lbs.
• Unit Size L x W x H: 23.54 x 8.59 x 7.05 inches
• Shipping Weight: 42 lbs.
• Shipping L x W x H 29.13 x 12.40 x 11.81 inches
