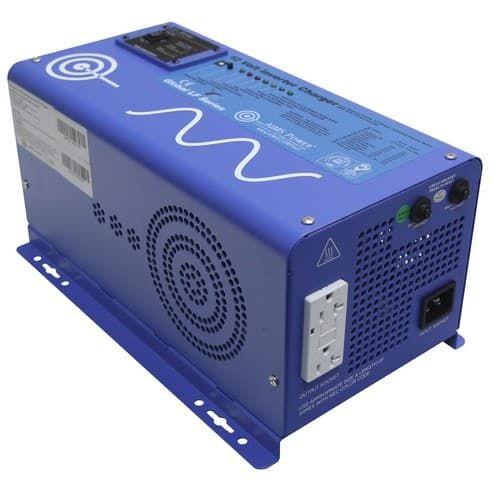

AIMS Power, PICOGLF10W12V120VR, 1000 Watt Low Freq Inverter Charger

  • Model: PICOGLF10W12V120VR
  • GTIN: 00840271002378
  • Manufactured by: AIMS Power
  • Condition: New
  • Estimated Delivery: Nov 23rd - Nov 29th
  • In Stock
Price:

$806.00 $620.00

Would you like to add these items to your order?
AIMS Power, REMOTELF, LCD Remote Panel  $239.20 $184.00

Manufacturer Info

Here's the AIMS Power 1000 Watt Pure Sine Low Frequency Inverter with built-in battery charger. This inverter charger is perfect for small-sized industrial applications that depend upon power being available even under heavy load. This heavy-duty inverter charger is ready to go wherever you need it to: campsites, tailgating parties or just at home. Use this product to power your essential household appliances during a power outage emergency. This inverter is also great in a smaller RV or boat. If 1000 watts is not enough power, check out our full line of low frequency inverter chargers available in 12, 24 & 48 volt versions.

This AIMS power inverter charger is capable of accepting any source of 120v AC power to charge batteries, including a gas or diesel generator or shore power at an RV park/truck stop. It will even accept power from an extension chord plugged into your wall outlet at home. This inverter charger is capable of a 3000 watt surge for 20 seconds and can run at 1000 watts continuously.

As an additional feature, this inverter is capable of being used worldwide by virtue of its auto frequency detection capabilities. It will run in any country that uses 120vac output. It works with type-A plugs or a direct 3-wire terminal connection. This inverter comes with a dual-plug GFCI outlet with a reset button. This inverter will never completely drain your batteries as it's low-voltage shut-down keeps the voltage at either 10 volts or 10.5 volts depending on your selection.

With the battery priority mode, you can set your inverter to run directly off of a battery back-up system instead of a generator or tertiary source of AC Power. The inverter charger comes with a power saver mode that pulses every 30 seconds, attempting to detect a necessary load of 25 watts or more before it will turn on. Otherwise, the inverter will sleep and draw right around a half an amp per hour, saving you precious reserve power in your batteries until you need it.

An optional wired remote can be added for fast and easy operation if your inverter charger is mounted in a location that is inconvenient to get at. This allows the unit to be operated within the cab of a vehicle or from another location in the home or campsite.

Features
  • 1000 watt low frequency inverter
  • 3000 watt surge for 20 seconds 300% surge capability
  • Battery Priority Selector
  • Terminal Block

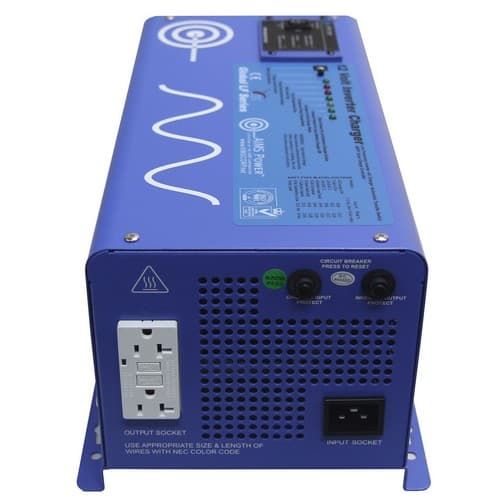

  • GFCI outlet
  • Marine Coated and Protected
  • Multi Stage Smart charger 20 Amp
  • remote panel available
  • auto frequency
  • 10msec typical transfer time
  • optional 25W power save mode
  • 7 battery type settings for charger
  • Product Manual | Download
Specifications
Inverter Output Specifications
  • Continuous Output Power: 1000 Watts
  • Surge Rating: 3000 Watts (20 Seconds)
  • Output Waveform: Pure Sine/Same as input (Bypass Mode)
  • Nominal Efficiency: >88% (Peak)
  • Line Mode Efficiency: >95%
  • Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical Transfer Time: 10ms (Max)
  • THD: < 10% DC
Input Specifications
  • Nominal Input Voltage: 12.0Vdc
  • Minimum Start Voltage: 10.0Vdc
  • Low Battery Alarm: 10.5Vdc-11.0Vdc
  • Low battery Trip: 10.0Vdc-10.5Vdc
  • High Voltage Alarm: 16.0Vdc
  • Low battery Voltage Restart: 15.5Vdc
  • Idle Consumption: <0.5 amps AC
  • Power Saver Mode Idle Consumption: <1 amps AC
Charger Specifications
  • Output voltage: Depends on battery Type
  • Charger Rate: 20A
  • Over Charge Protection Shutdown 15.7V
  • Selectable Charge setting based on battery type
  • Adjustable charge current off-20%-100%
  • Four Stage Smart Charger
Transfer Switch Specifications
  • 30 amp auotmatic transfer switch
  • 10 ms (max)
Dimensions
  • Unit Weight: 35 lbs.
  • Unit Size L x W x H: 15.0 x 8.59 x 7.05 inches
  • Shipping Weight: 39 lbs.
  • Shipping L x W x H 20.5 x 12.40 x 11.81 inches
