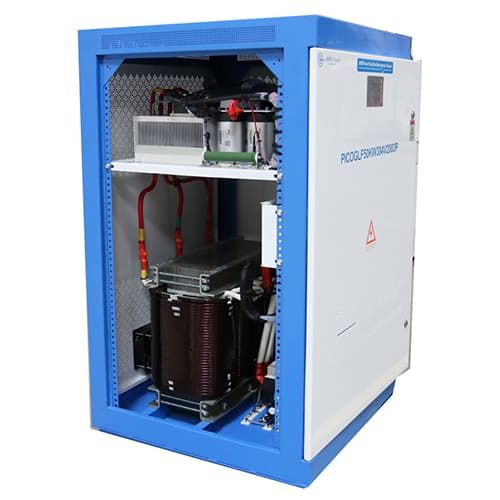

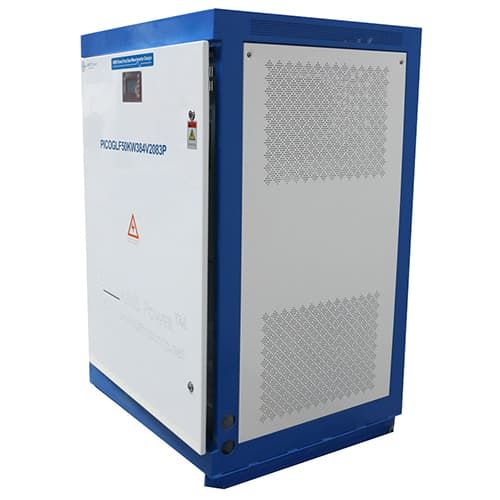

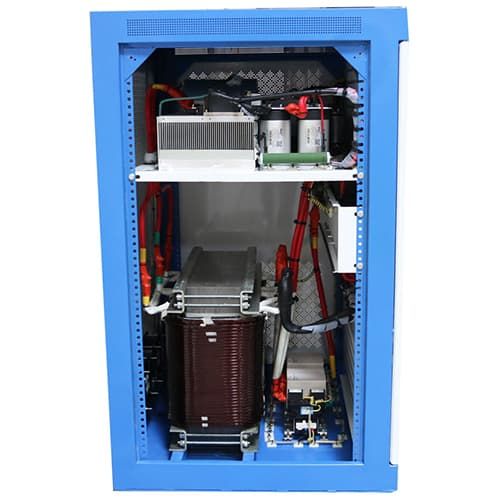

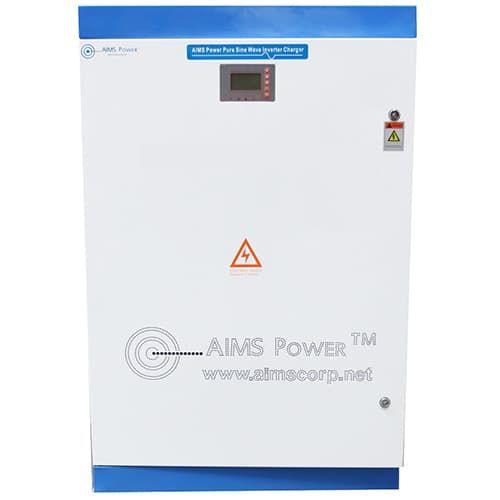

We offer HUGE DC to AC pure sine inverter chargers 30KW up to 200KW. Introducing the NEW AIMS extra large power inverter charger product line in 240 split phase or 208 three phase. This off-grid, back up power inverter is perfect for businesses, large homes, farms or other applications that require huge amounts of back-up power. These units have a large DC input range allowing you to create your own DC input source such as solar, wind, hydro and deep cycle batteries. You don't need to use batteries. The higher DC input enables you to operate more efficiently when using this inverter. Its modular, simple and easy design allows for convenient access for maintenance and adjustments. The IPM provides high efficiency and stable performance prolonging the overall life of this inverter. The inverter also includes a power LCD display monitoring DC input, output frequency, phase voltage, phase current, AC bypass input voltage, output power kWH, time and date, temperature and fault codes. We also offer extended warranties. UL Listed.

Every inverter is built to order so please allow 8-10 weeks for delivery. Free Shipping to the 48 states.

Features

• Pure sine wave technology
• DC to AC power inverter
• 30,000 - 200,000 watt models available for off-grid back up power - 50KW in stock. 30KW, 80KW, 120KW and 200KW models are available via special order and ship within 12 weeks
• Simple design for convenient maintenance
• LCD panel
• 50 and 60 Hz
• Adjustable programmable output voltage: -40% to +20% of rated voltage
• Adjustable DC input voltage, over voltage, under voltage, recovery time can all be set via the LCD panel
• Step-down Voltage and Variable Frequency start up modes
• Efficiency - >94%
• Low frequency preventing RF interference
• Low idle consumption
• AC bypass input function
• Ideal for DC EMerge 380-volt DC
• RS485 remote monitoring optional
• Certifications: CE, CEC, CSA22.2, UL1741 and ERAC certified

Optional battery package add-on available and includes

• 32 AGM deep cycle 12V 200 amp batteries
• 31 Battery jumper cables
• 1 set of 10? cables for battery bank to inverter
• ANL fuse kit for extra protection

Optional solar panel package available and includes

• 18 or 24 solar panels
• All PV cables and connectors needed
• 100 amp charge controller

DC Input

• DC input - 300 volt
• DC input range - 200-600 Vdc
• Rated current amps - 100 A

AC Input

• 120 / 208 Vac

AC Output

• 30,000 - 30kw (50KW, 80KW, 120KW and 300KW models available via special order)
• Pure sine wave
• 208 VAC (+- 3%) 110/120/220/230/240/280/400/415/440 can be customized
• Three phase L1 + L2 + L3 + N + Earth
• Current: 83.3 A phase current
• Adjustable 50/60 hz
• Power Factor: >0.95
• Inverter efficiency: >94%
• LCD Display
• Voltage accuracy - Load balancing<1%, Unbalance <5%
• THD: linear load ,2%, nonlinear load >3%
• No load amps: 2% of inverter size depending on DC voltage (1000 watts / DC input voltage = amps)

Protections

• Overload 150% - 5 seconds, 120% for 35 seconds
• Input reverse polarity
• Under voltage
• Over voltage
• Output over current
• Short circuit
• Over temperature
• Fan cooled - Always on
• Short circuit: no automatic recovery. Restart required
• <50dB
• Operating temperature: -25 to 55 Celsius (-13 to 131 Fahrenheit)
• Humidity: 90% non-condensing
• Dimensions: 33.5"D x 33.5"W x 51.2"H
• Weight: 926 lbs
• CE, UL 1741 and CS22.2
