Contour Solar Array Trim
Aesthetic Arrays, Sleeker All Around
IronRidge Contour Trim elevates the look of any solar array by providing a sleek trim (or skirt) across the south edge or around the perimeter to hide components that are visible beneath the solar panels. Homeowners want the solar on their home to meet their energy needs, while not detracting from their home's aesthetics. Contour will make any array look great, and have your crew on and off the roof in a snap.
Contour Trim Components
Contour Trim
Trim comes in 84" lengths of black powder-coated aluminum. Pieces can be cut to length to fit the array edge.

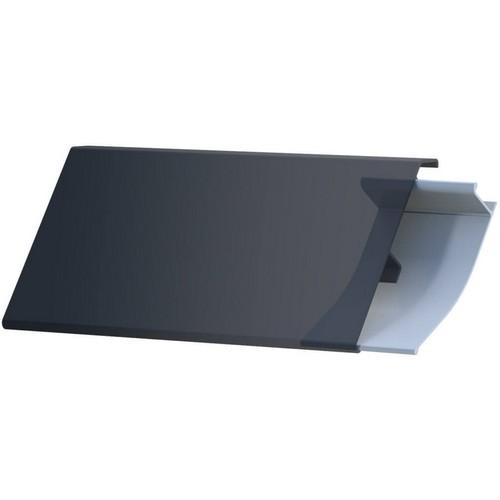

Contour Splice
The Splice connects two pieces of Trim together, tool-free. Trim easily slide and can be pushed into place.
Contour Clamp
The Clamp secures to bottom flange of most modules. T30 Torx bolts used to reduce visible gaps (bit included).
Contour Outer Corner Cap
The Outer Corner Cap easily slides onto Trim, without any tools, to wrap Trim around outside array corners.
Contour Inner Corner Cap
The Inner Corner Cap easily slides onto Trim, without any tools, to wrap Trim around inside array corners.
Contour End Caps
The Ends Caps are a pair, for the left and ride side of Trim. Equipped with a metal clip, they grip firmly in place.
