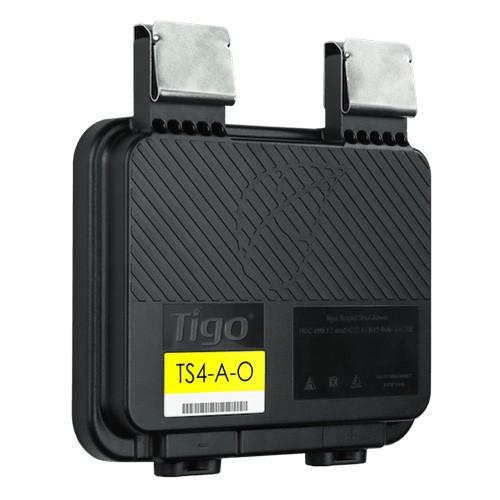

TS4-A-O

Optimization is a Flex MLPE function available as an integrated modular junction box base (TS4-O) or as an add-on unit (TS4-A-O). Design using unequal string lengths, mixed orientations, or areas of mismatch. Install in shaded areas with a reduced setback ratio. In addition to optimization, the TS4-A-O enables module level monitoring, and rapid shutdown in compliance with NEC 2014, 2017, 2020.

• Datasheet: TS4-A-O (Optimization) | Download
• Datasheet: TS4-A-O (Optimization) (AU) | Download
• Quick Start Guide: TS4-A-O/S/M with TAP and CCA | Download
• Installation Manual: TS4-A-O, TS4-A-S, TS4-A-M, CCA, TAP | Download
• Whitepaper: Optimization with Impedance Matching and Predictive IV | Download
• Whitepaper: Quantifying Mismatch | Download

Functions

• Optimization
• Monitoring
• Rapid Shutdown

Features and Benfits

• Suitable for up to 700W solar modules
• The higher performance optimizer with Predictive IV Technology (PIV)
• The ONLY optimizer with selective deployment
• Includes the benefits of Safety & Monitoring
• Meets US NEC rapid shutdown requirements
• Optimizes right out of the box
• Shade and age tolerance to maximize lifetime yield
• Works wirelessly with the TAP & CCA
• 25-year warranty

Configuration

• 1 module per TS4

Required

• CCA + TAP
